Data display 2.8” MFD28 Gen.2 LHD window side | fits Seat Leon / Cupra (1M) | CANchecked

AED 1,622.44*

Prices excl. VAT plus shipping costs

Delivery time: approx. 3-7 working days*

place a request

Finanzieren Sie ihren Einkauf über die Targobank.

Product number: CC36010

Product information "Data display 2.8” MFD28 Gen.2 LHD window side | fits Seat Leon / Cupra (1M) | CANchecked"

The 2.8” CANchecked multifunction display Gen.2 for in-depth vehicle information and optional analog sensors.
With CANBus connection cable and holder for the Seat Leon (1M) LHD (window side).

The second generation of CANchecked displays offers:
- Improved graphics with better anti-aliasing
- Swiping instead of tapping (gesture control)
- The widgets are more precisely adjustable
- New warning pop-up functions

Details:
- Haldex control for GEN1 and GEN2 Haldex
- 2.8-inch capacitive touch display incl. vehicle-specific installation frame for the ventilation panel
- Integrated shift flash function
- Connection via CanBus and serial interface
- CANBus values can be displayed
- 2 digital and 4 analog inputs for 0-5V sensors (e.g. oil pressure, fuel pressure, exhaust gas temperature (with type K converter) and boost pressure)
- 8GB SD card memory
- Up to 10 freely configurable pages
- CANBus switching
- Data logging

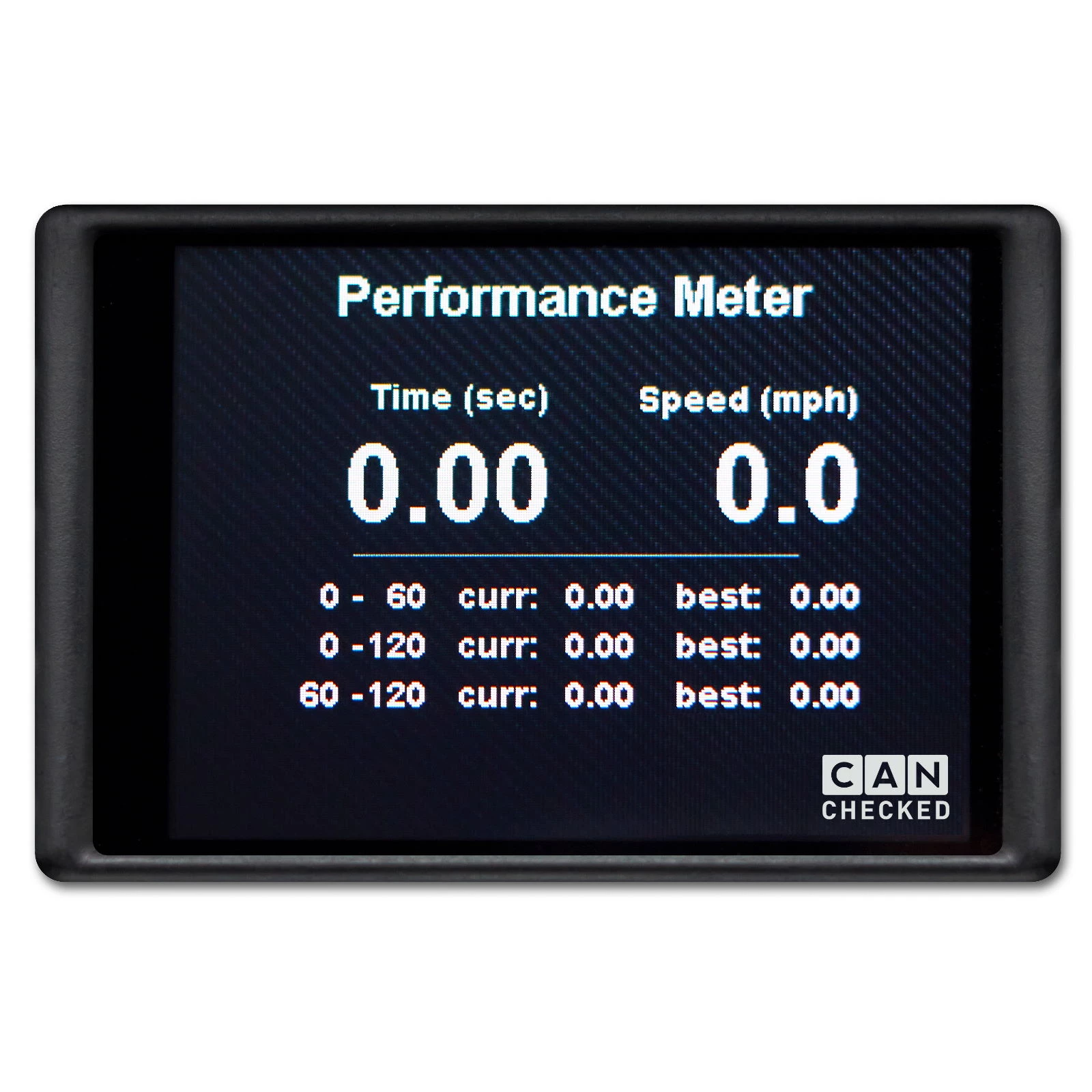

- Performance meter (measure times e.g. 100-200 km/h)
- Individual minimum and maximum warning values
- Pop-up function when values are exceeded or undercut
- Adjustable screen brightness

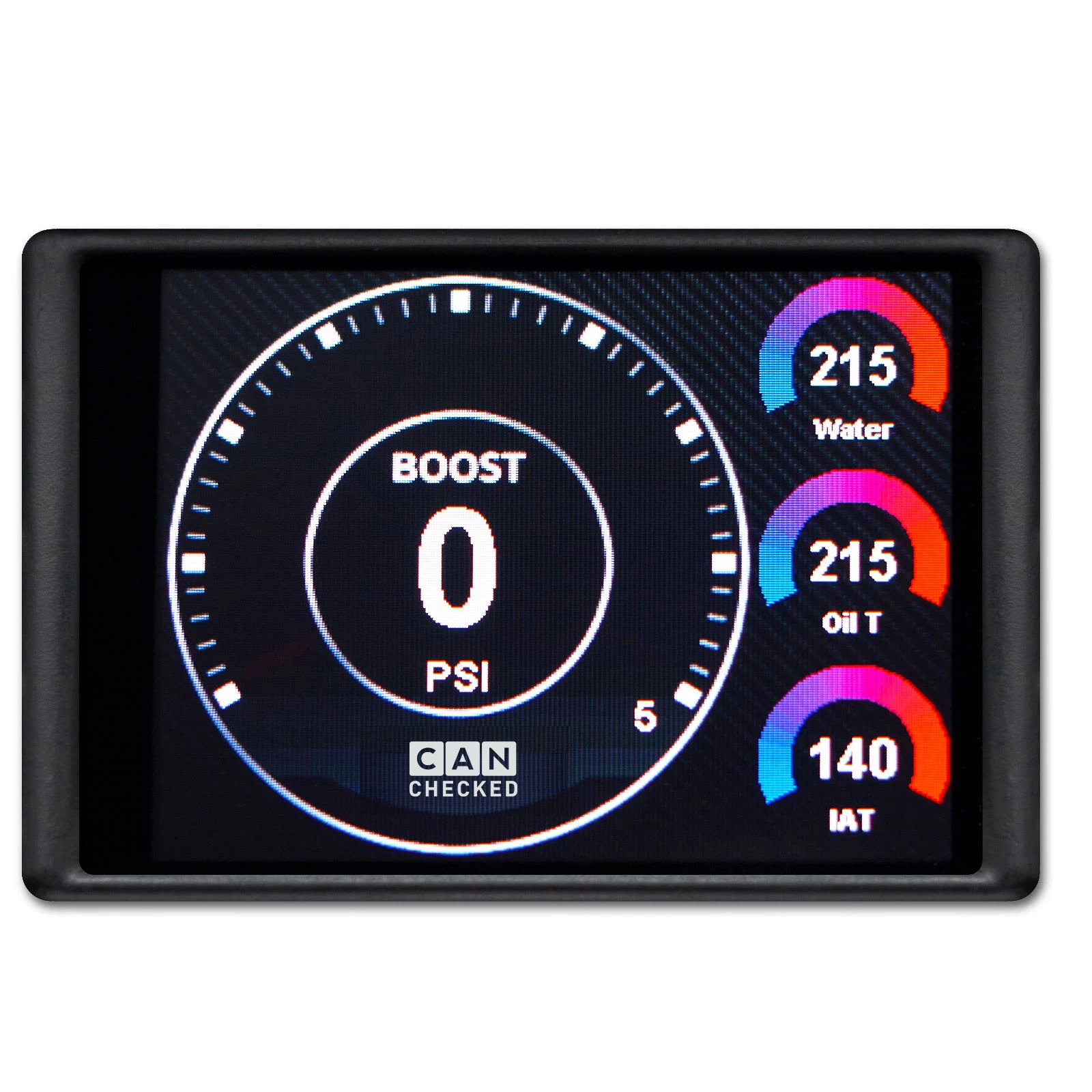

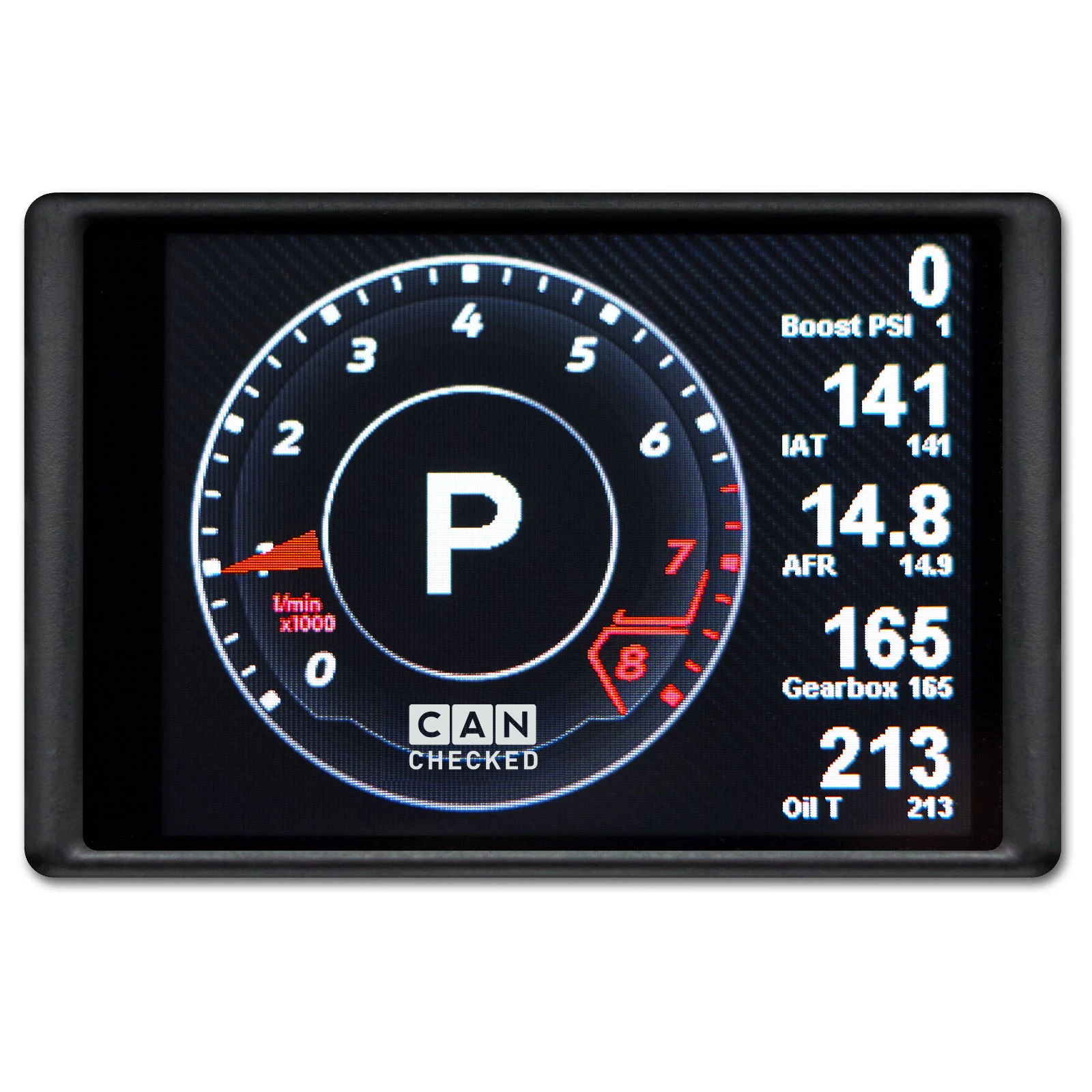

Views:
- 10 pages freely configurable
- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, tableswitch, image (from SD card), number, circle display, Haldex)
- Widgets can be moved and resized via drag'n'drop
- Color adjustments are possible depending on the widget

Performance Monitor:
High-speed CAN integration provides access to up to 128 vehicle sensors that can be displayed in real time. The 2.8” touchscreen makes it easy to swap sensors and set up custom ranges and alerts using the DSS software.

Diagnostics function:
Swipe down from any page to instantly diagnose the fault memory. CANchecked can read, diagnose and clear codes for engine, ABS, transmission, ESP, TPMS and other systems.

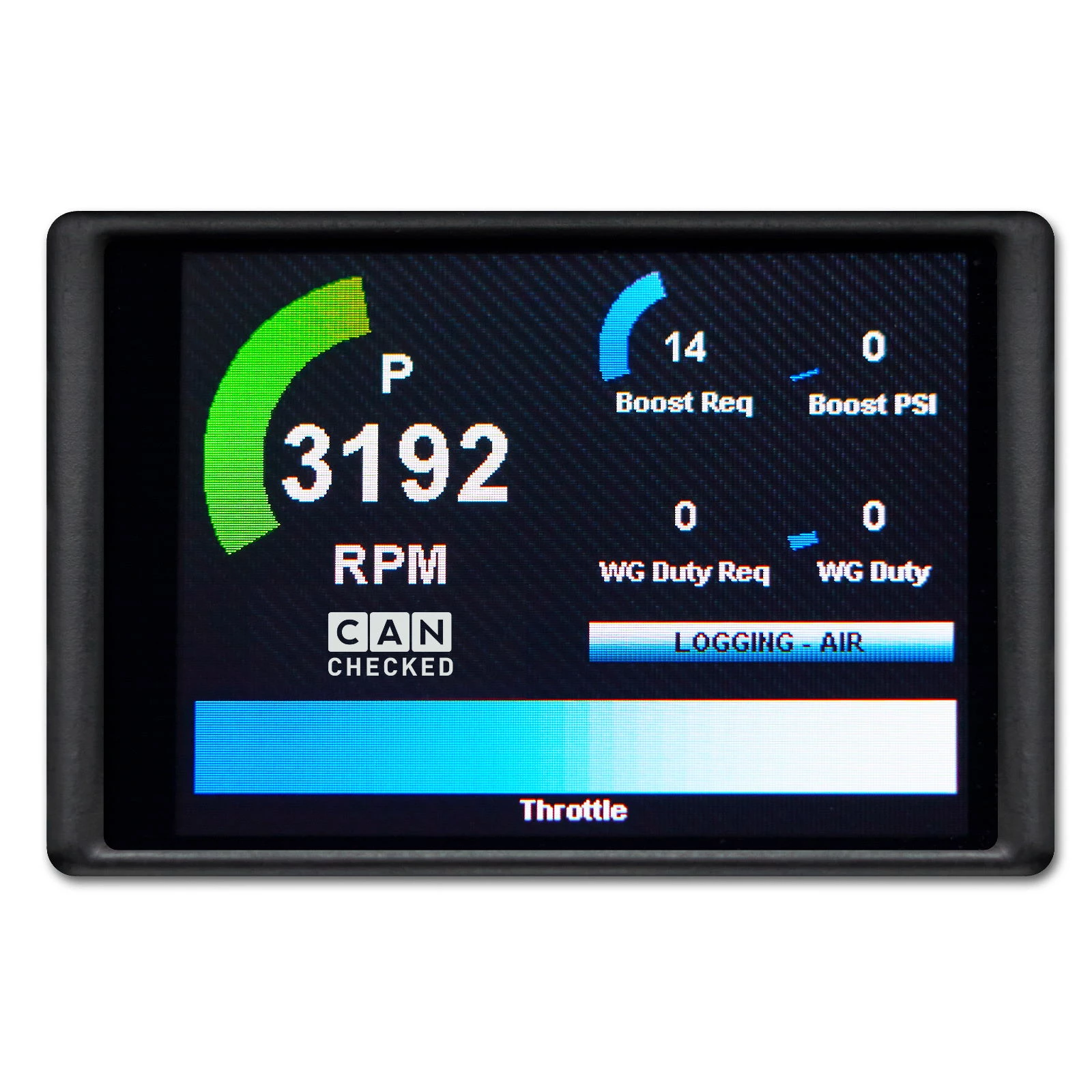

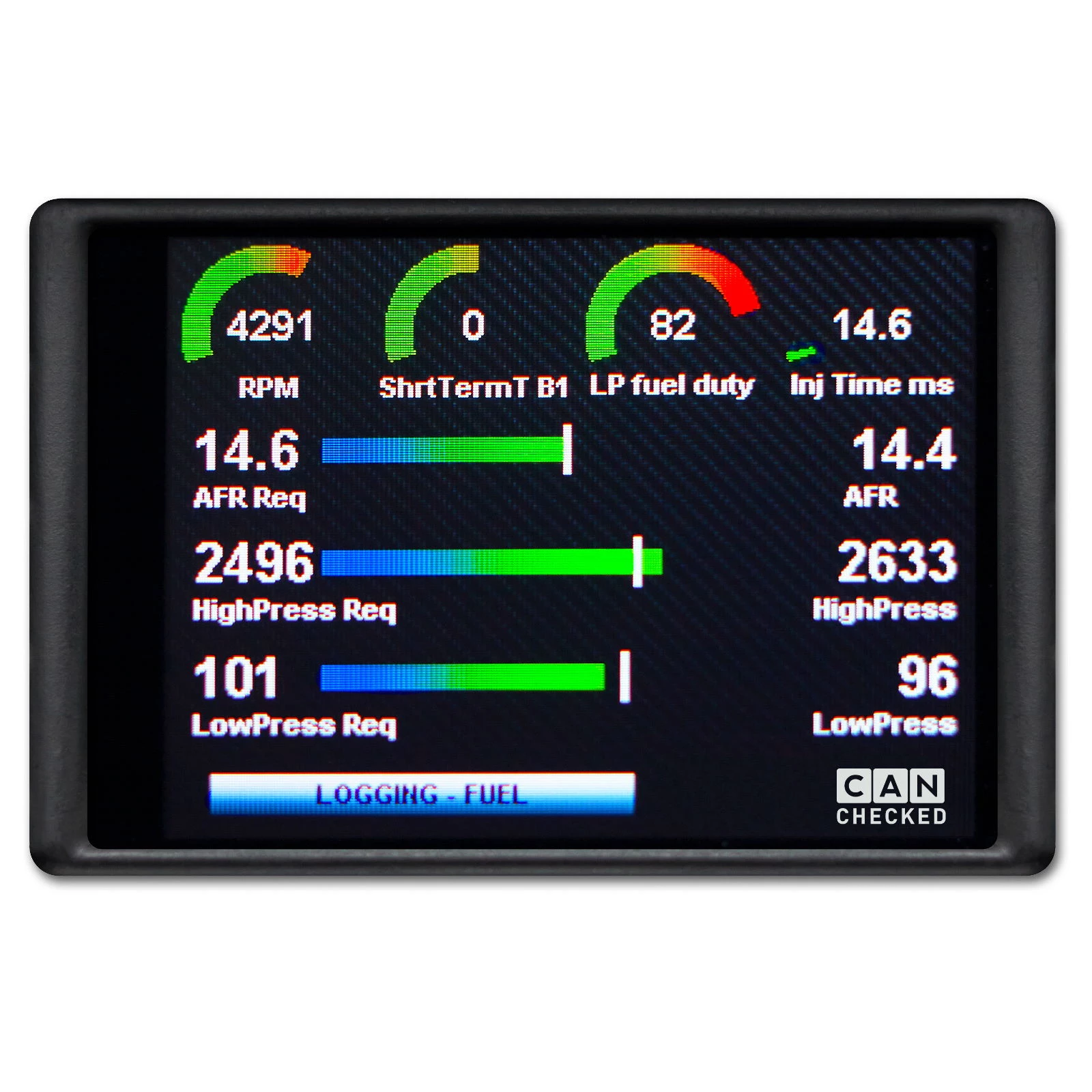

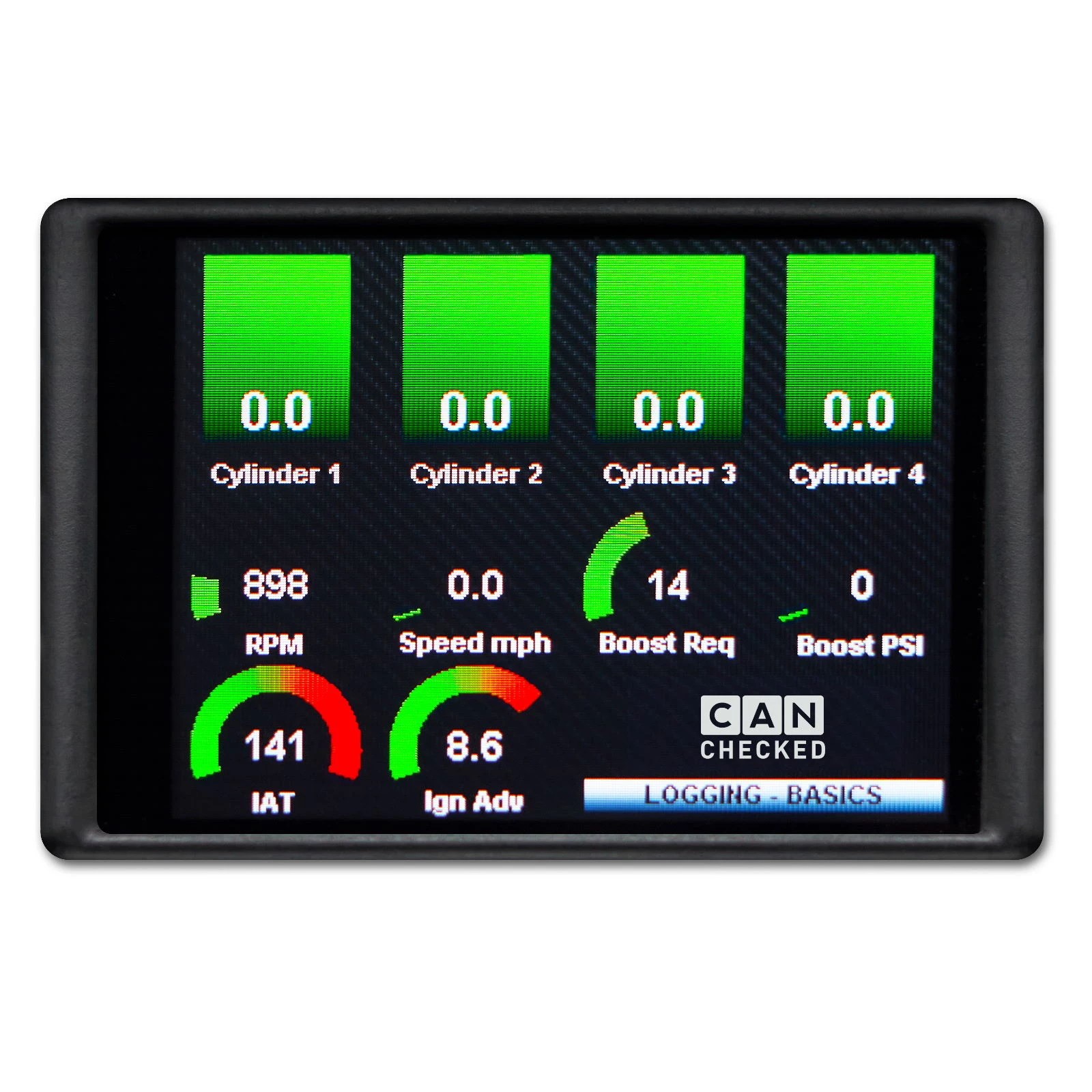

Data Logging:
Easily access the log on demand and save to the internal SD card.
Four different logging types are available:
1. USB: logs all sensor data live via USB
2. SD card: all sensor data is logged to the SD card
3. debug: all CAN bus data is logged via USB.
4. sDbg: all CAN bus data is saved on the SD card (CAN bus logger)
The logviewer is available online for evaluating the log. Simply load the log file and use the intuitive interface.

Plug & Play installation:

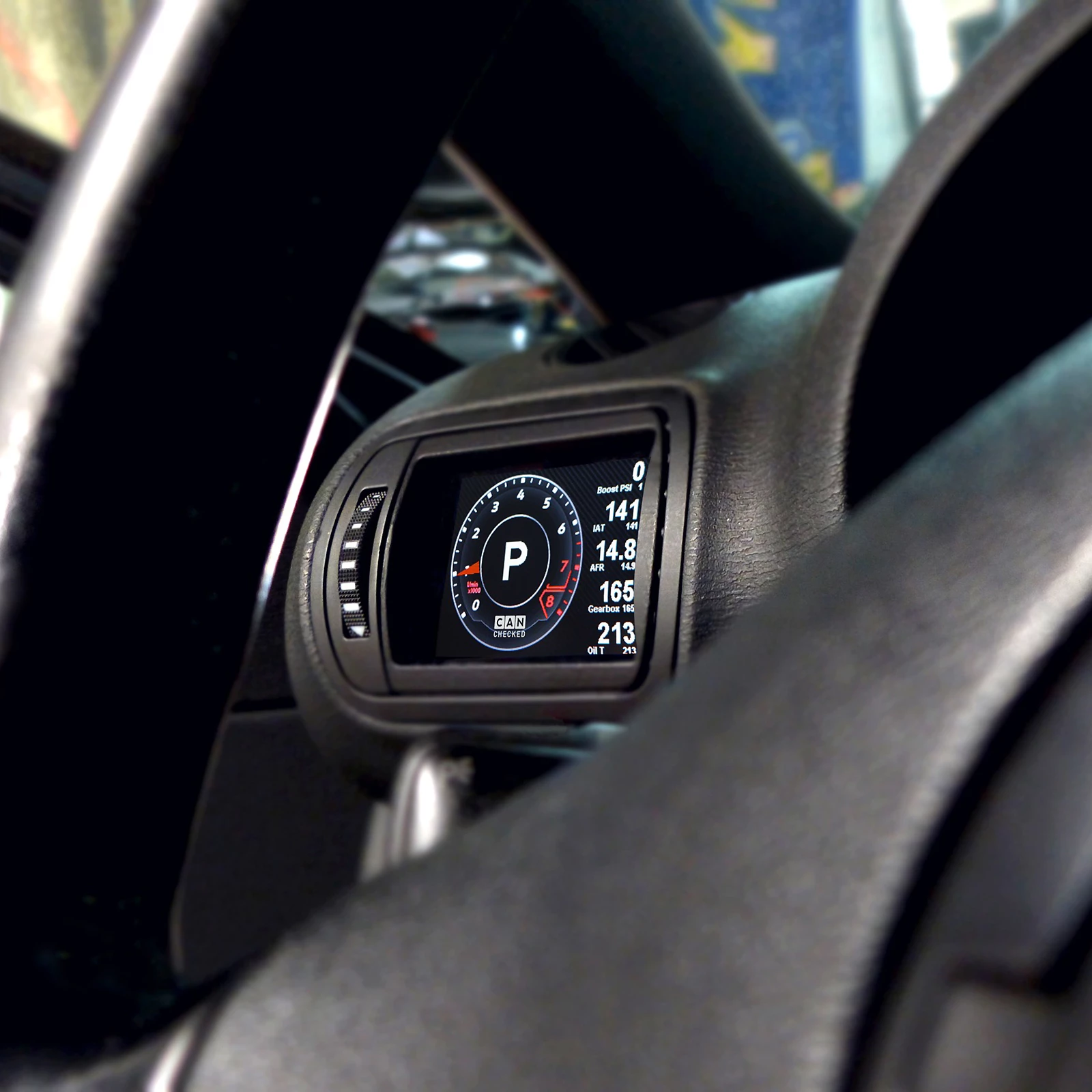

In addition to the universal versions, CANchecked also offers displays with vehicle-specific installation frames. These are precision-manufactured and fit perfectly into the interior of your vehicle without hindering the functionality of your vehicle's ventilation system.

Expandable functionality:
Haldex control unit for VAG Haldex GEN.1 and Gen.2 (*Please observe CANchecked Haldex installation instructions before purchasing!)
4 analog and 2 digital inputs enable the monitoring of sensors and devices from other manufacturers. Future licenses under development will allow the integration of water-methanol injection systems and ethanol fuel systems.

Data the way you want it!
CANchecked can display up to ten pages and has access to up to 128 sensors on your vehicle (OBD 2 vehicles with optional CANchecked OBD 2 harness only). Use the touchscreen to navigate between the individual pages and select which sensor you want to display. Need more customization options? You can personalize your views by customizing the graphics, sensors and widgets using the included DSS software. We have already uploaded some examples to your CANchecked display to help you get started.

Supported values:
“ALL” -> The control unit manufacturers themselves determine which values are sent via the interface and document them accordingly. Up to 128 sensors can be queried with the display if the manufacturer supports this.

Supported control units:
All control units with a documented CAN bus or serial interface are generally supported. The latter is only possible with an optional serial adapter. The manufacturers usually supply a “dbc” file, which is then converted into a .tri file for the display. This can also be done by the customer himself using the DBC converter via the manufacturer's website.

The following control units have already been implemented:
- trijekt (Premium, Bee, trigifant)
- Megasquirt 2 and 3
- k-data KDFI
- UMC1/UMC2
- EFIgnition
- Microsquirt
- EcuMaster EMU (classic with Can-Bus adapter: EMU Black)
- AIM generic protocol
- LinkECU
- Haltech v2
- MME ECU481 with Can Bus
- SCS Delta GDI4 and Delta
- VAG (Audi / VW / Seat)
- Van kronenburg KMS MD35 (MP25 with CAN bus adapter)
- VEMS with serial adapter
If your control unit is not listed, please contact us.

Scope of delivery:
- CANchecked 2.8 inch display incl. vehicle-specific mounting frame
- Micro-SD card adapter
- Quickstart Guide
- Plug A, plug B
- Pre-crimped cables
- Four mounting screws
- 8 GB micro SD card (installed)
- Display foil
- 2x 1K1 pull-up resistor (for NTC)
- Additional pins to crimp yourself

The widgets can be set directly on the display.
The temperature range of the display is -10°C to 70°C.
A 12V power supply is required, 5V or 24V are also available as options.

Dimensions:
- Opening 73x54.4mm
- Bezel 87.5x58mm
- Depth 29mm

MFD28 Technical data:
- Dimensions: 70.3 x 52mm
- Hardware: 2.8” TFT screen, touchscreen, MicroSD, MicroUSB
- High-quality milled aluminum front frame
- Symmetrical display - ideal for rotating it by 90
- Views completely freely configurable on the PC with our DSS - Display Setup Software
- Up to 64 widgets per display
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- Optional external switching flash
- Can bus switching
- Can Bus protocols: UDS, KWP2000, OBD
