Data display 2.8” MFD28 Gen.2 | fits Seat Leon / Cupra (5F) | CANchecked

AED 1,983.75*

Prices excl. VAT plus shipping costs

Delivery time: approx. 3-7 working days*

Steering wheel position

Left-hand drive

Right-hand drive

Finanzieren Sie ihren Einkauf über die Targobank.

Product number: CC36030

Product information "Data display 2.8” MFD28 Gen.2 | fits Seat Leon / Cupra (5F) | CANchecked"

The CANchecked Gen.2 multifunction display for OBD2 and analog sensors.

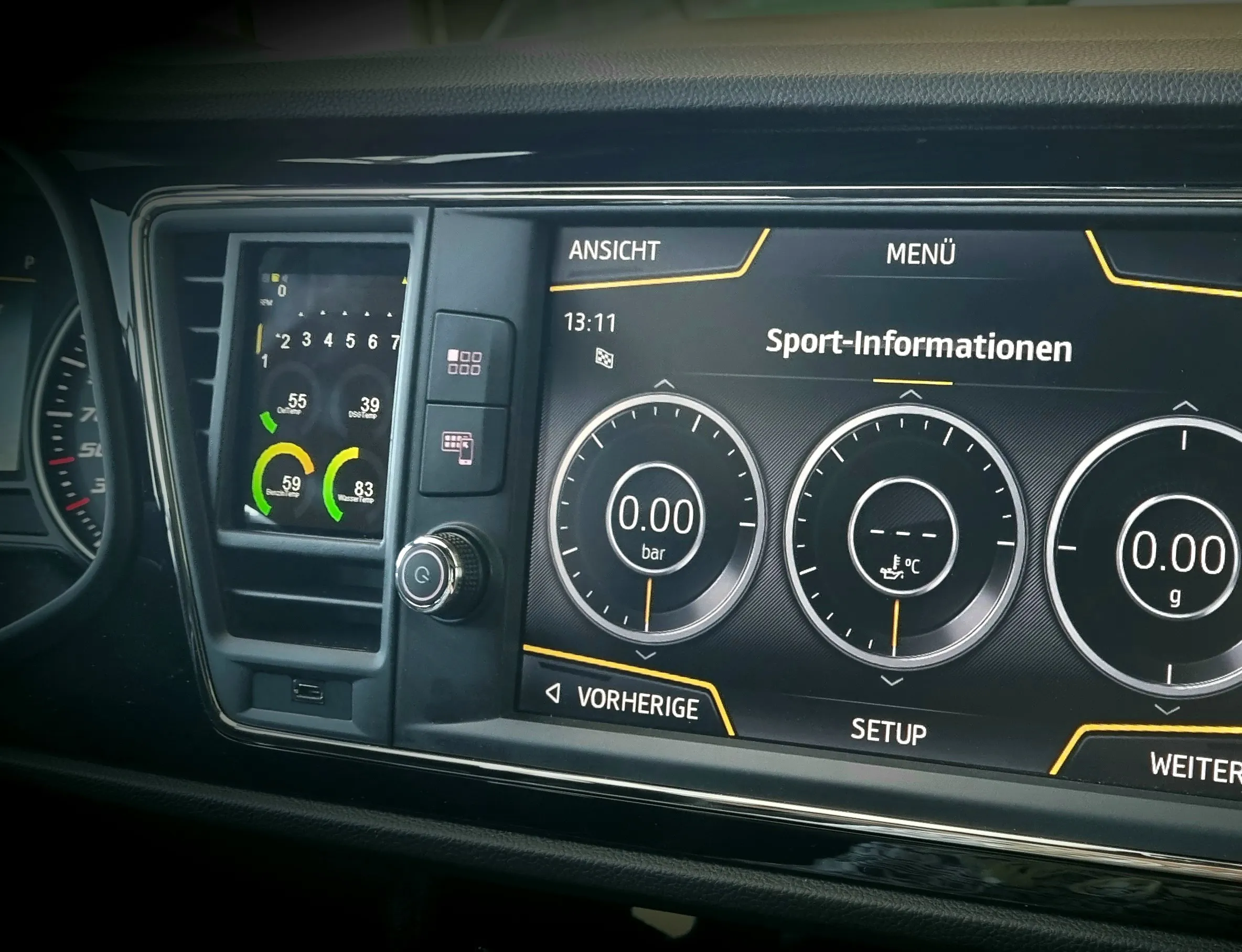

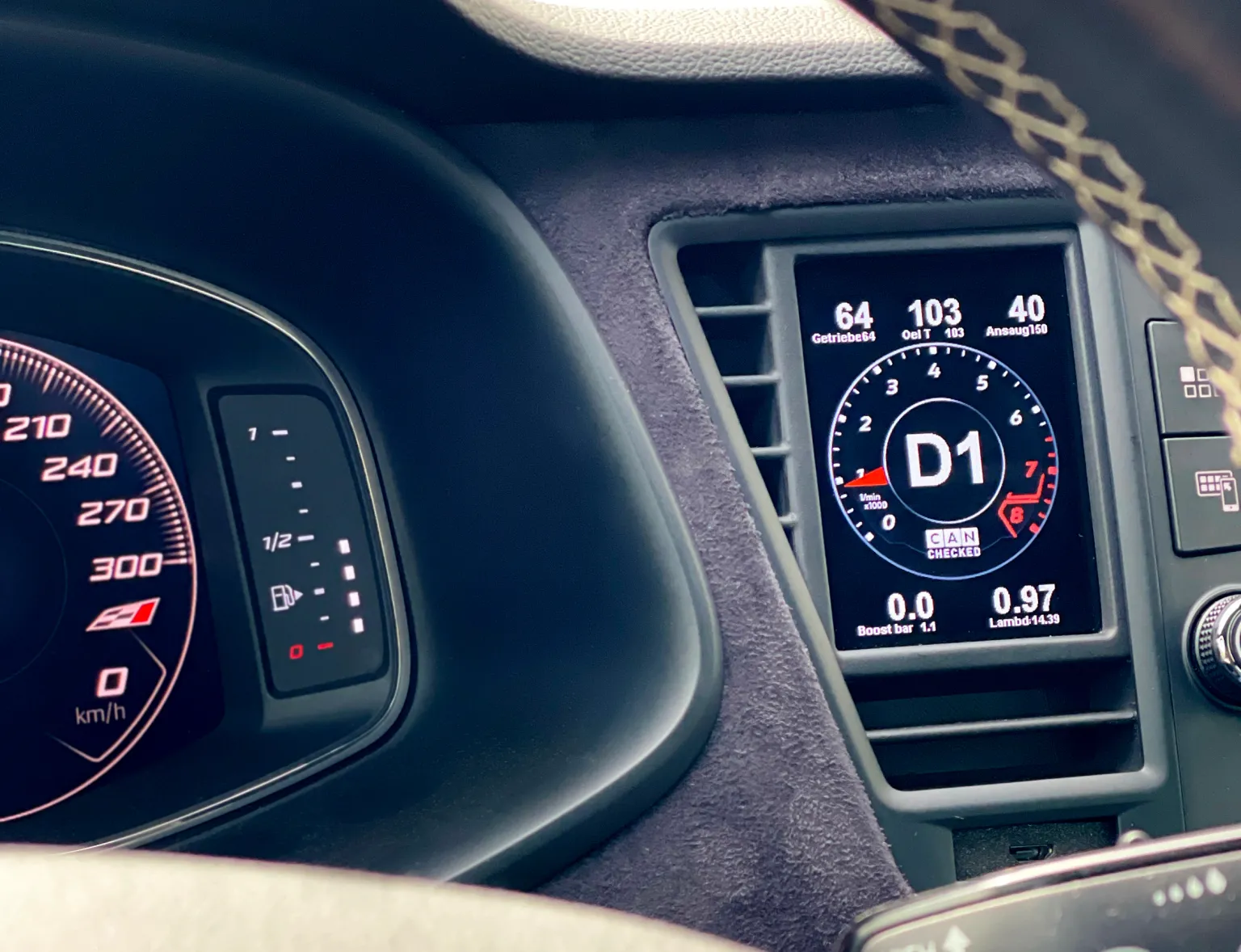

With OBD 2 cable and vehicle-specific holder for the Seat Leon / Cupra 5F air vents.

The second generation of CANchecked displays offers:
- Improved graphics with better anti-aliasing
- Swiping instead of tapping (gesture control)
- The widgets are more precisely adjustable
- New warning pop-up functions

Details:
- Haldex control for GEN1 and GEN2 Haldex
- 2.8-inch capacitive touch display with mounting frame
- OBD 2 values can be displayed (adapter cable included)
- 8GB SD memory card
- Up to 10 freely configurable display pages
- Connection via OBD2 car connector
- Two digital and four analog inputs for 0 - 5V sensors (e.g. oil pressure, fuel pressure, exhaust gas temperature (with adapter) and boost pressure)
- Integrated shift light
- Performance meter (e.g. measures the time from 100-200 km/h)
- Individual minimum and maximum warning values
- Pop-up function when warning values are exceeded or undercut
- Adjustable screen brightness

Views:
- 10 pages freely configurable
- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, tableswitch, image (from SD card), number, circle display, Haldex)
- Widgets can be moved and resized using drag'n'drop
- Color customization possible depending on widgets

Performance Monitor:
The high-speed CAN integration enables access to up to 128 vehicle sensors that can be displayed in real time. The 2.8" touchscreen makes it easy to swap sensors and set up custom ranges and alerts with the DSS software.

Diagnostics function:
Swipe down from any page to instantly diagnose the fault memory. CANchecked can read, diagnose and clear codes for engine, ABS, transmission, ESP, TPMS and other systems.

Data Logging:
Easily access the log on demand and save to the internal SD card.
Four different logging types are available:
1. USB: logs all sensor data live via USB
2. SD card: all sensor data is logged to the SD card
3. debug: all CAN bus data is logged via USB.
4. sDbg: all CAN bus data is saved to the SD card (CAN bus logger)
The logviewer is available online for evaluating the log. Simply load the log file and use the intuitive interface.

Plug & Play installation:
CANchecked also offers displays with vehicle-specific installation frames in addition to the universal versions. These are precision-manufactured and fit perfectly into the interior of your vehicle without hindering the functionality of your vehicle's ventilation system.

Expandable functionality:
4 analog and 2 digital inputs enable the monitoring of sensors and devices from other manufacturers. Future licenses under development will allow the integration of Haldex all-wheel drive controllers, water-methanol injection systems and ethanol fuel systems.

Customizable screen displays:
CANchecked comes with six pre-installed dashboards. A total of ten display pages can be customized using the included software and library of widgets.

Data the way you want it!
CANchecked can display up to ten pages and has access to up to 128 sensors of your vehicle (only for OBD 2 vehicles with optional CANchecked OBD 2 harness). Use the touchscreen to navigate between the individual pages and select which sensor you want to display. Need more customization options? You can personalize your views by customizing the graphics, sensors and widgets using the included DSS software. We have already uploaded some examples to your CANchecked display to help you get started.

Supported values:
"ALL" -> The ECU manufacturers themselves determine which values are sent via the interface and document them accordingly. Up to 128 sensors can be queried with the display if the manufacturer supports this.

Scope of delivery:
- CANchecked 2.8 inch display incl. vehicle-specific bracket / mounting frame for ventilation grille
- Cable set
- OBD 2 adapter cable
- 8 GB micro SD card
- Micro-SD card adapter
- Quickstart Guide

The widgets can be set directly on the display.
The temperature range of the display is -10°C to 70°C.
A 12V power supply is required, optionally 5V or 24V are also possible.

MFD28 Technical data:
- Dimensions: 70.3 x 52mm
- Hardware: 2.8" TFT screen, touchscreen, MicroSD, MicroUSB
- High-quality milled aluminum front frame
- Symmetrical display - ideal for rotating it by 90
- Views completely freely configurable on the PC with our DSS - Display Setup Software
- Up to 64 widgets per display
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- Optional external switching flash
- Can bus switching
- Can Bus protocols: UDS, KWP2000, OBD
