Data display 3.2" MFD32 | fits Honda Civic Mk10 Type R (FK8) | CANchecked

Here we present our display for the Honda Civic FK8.

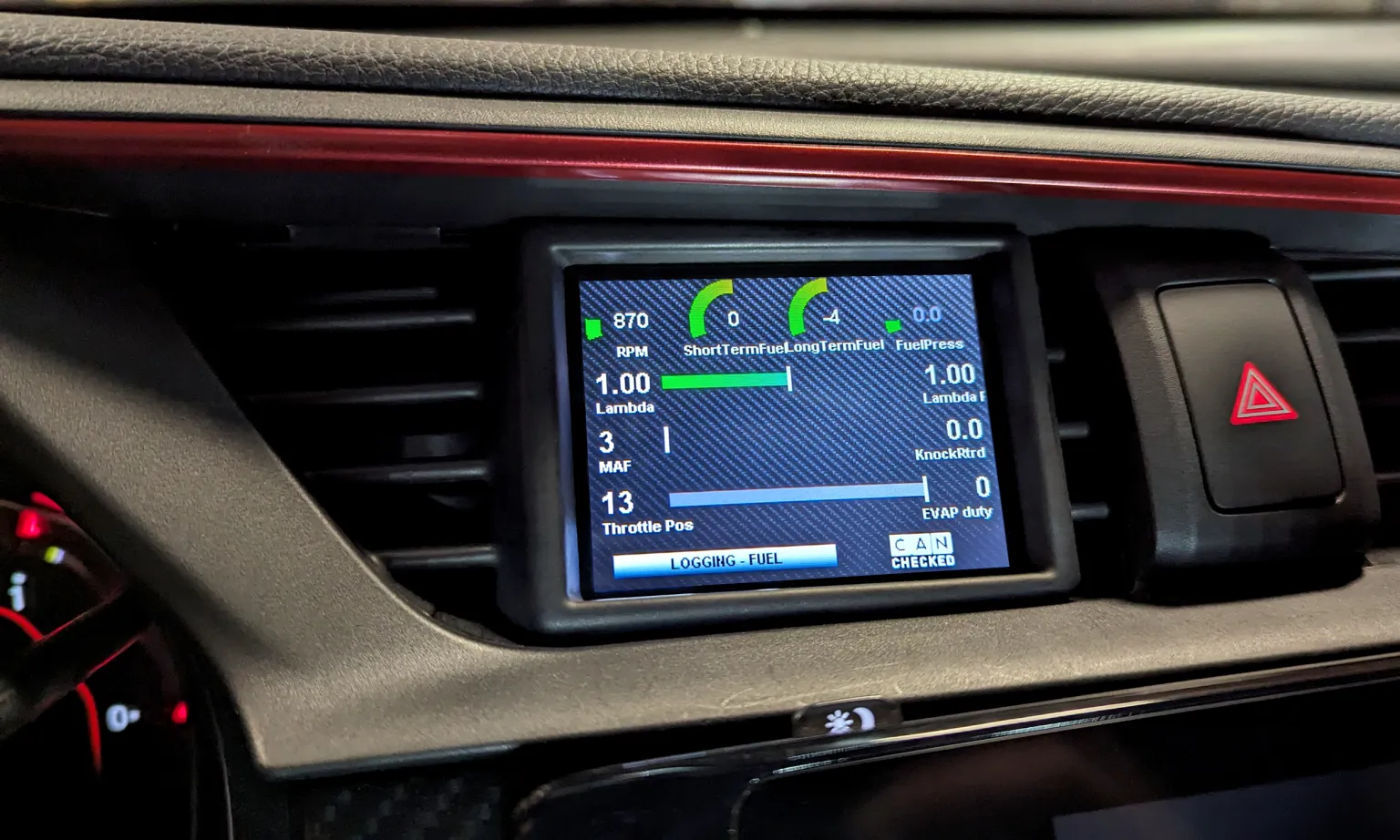

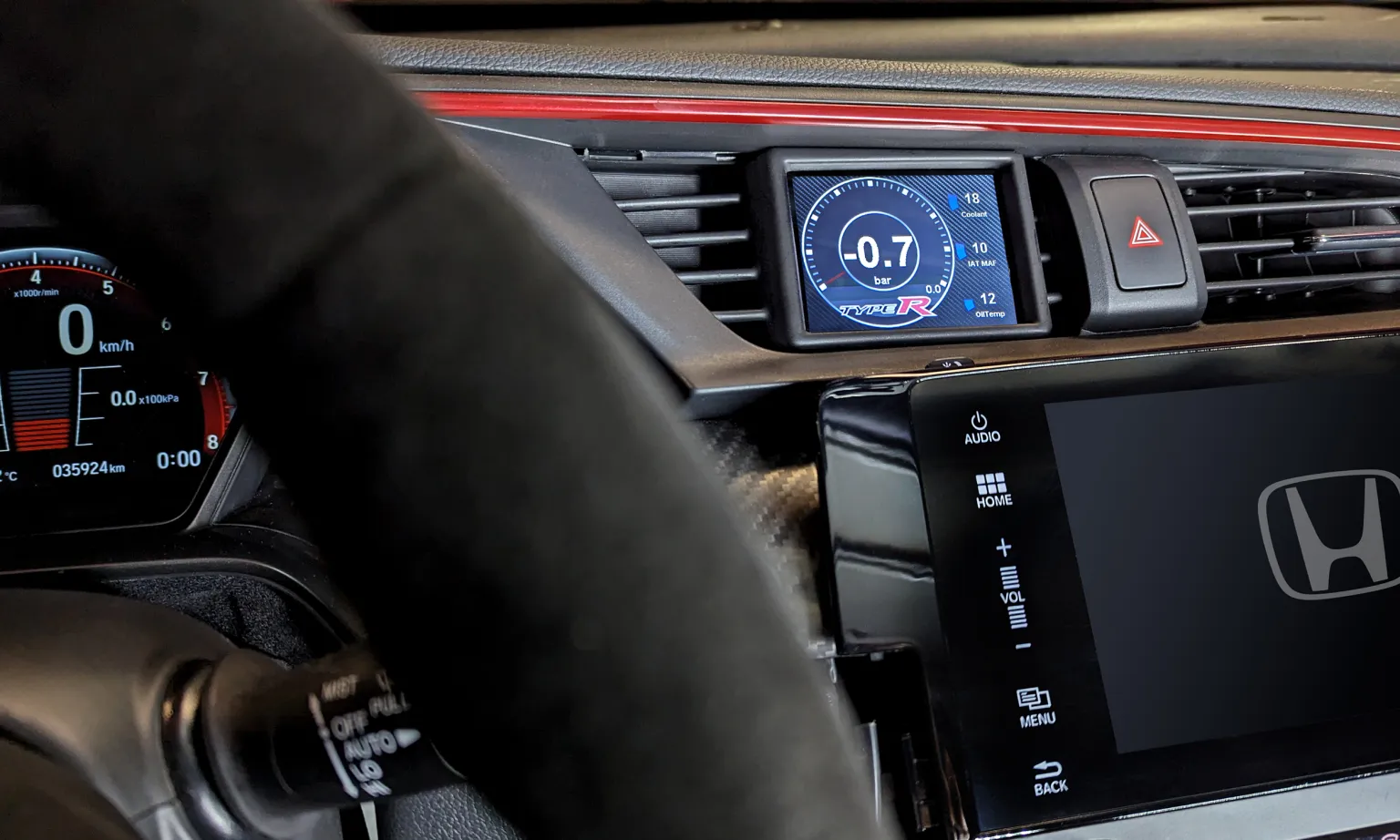

Access to all data from the engine control unit. So ALL. The sensors are queried directly via Can Bus and are displayed on our tried and tested MFD32. The Honda Civic FK8 display comes with a vehicle-specific cover and fits into the interior like an original part.

The sensors are queried via the manufacturer-specific Can Bus protocol. We have optimised the protocol to achieve maximum polling speed.

Details:
- Integrates perfectly into the vehicle interior
- Up to 128 sensors can be interrogated
- 10 individually configurable views with our DSS - Display Setup Software
- ready-made views for a quick start with our display
- simply plug and play via our cable set - plug in, done
- 4 additional analogue inputs for exhaust gas temperature, oil pressure and more
- Best readability - optional anti-reflective film included
- Query the sensors like manufacturer diagnostic tools

Performance metre:
Measure your acceleration times in our performance widget - 0-100, 100-200, 0-200

Data jogging:
Log all data to the internal SD card. Whether "on-demand" (start with a tap) or permanently. All data from your last turn is saved.

Preset alarms:
Preset alerts can be easily activated and customised. For example, receive a large warning message if the exhaust gas temperature is above 900 degrees.

4 additional analogue inputs:
Additional temperature and/or pressure sensors can be connected for further monitoring options. e.g. exhaust gas temperature or exhaust gas back pressure. An ethanol sensor can be connected to one of the digital inputs.

Read out/delete errors:
Read out errors from the engine control unit in plain text and also delete them

Customised design:
Whether it's the customised start screen or the selection from a variety of different widgets. Make the display your display!

Access to all data from the engine control unit:
We supply your display with a ready-made TRI file as standard. All sensors that are queried are defined here.

Temperatures:
Engine water temperature, intake temperature, exhaust temperature, transmission temperature

Pressures:
Boost pressure, ambient pressure, oil pressure

Lambda/mixture:
Lambda value target/actual, short-term lambda adjustment, long-term lambda adjustment, MAF, engine load, torque

Driver dynamics:
Brake pressure, vehicle speed, throttle angle/gas pedal position

Other:

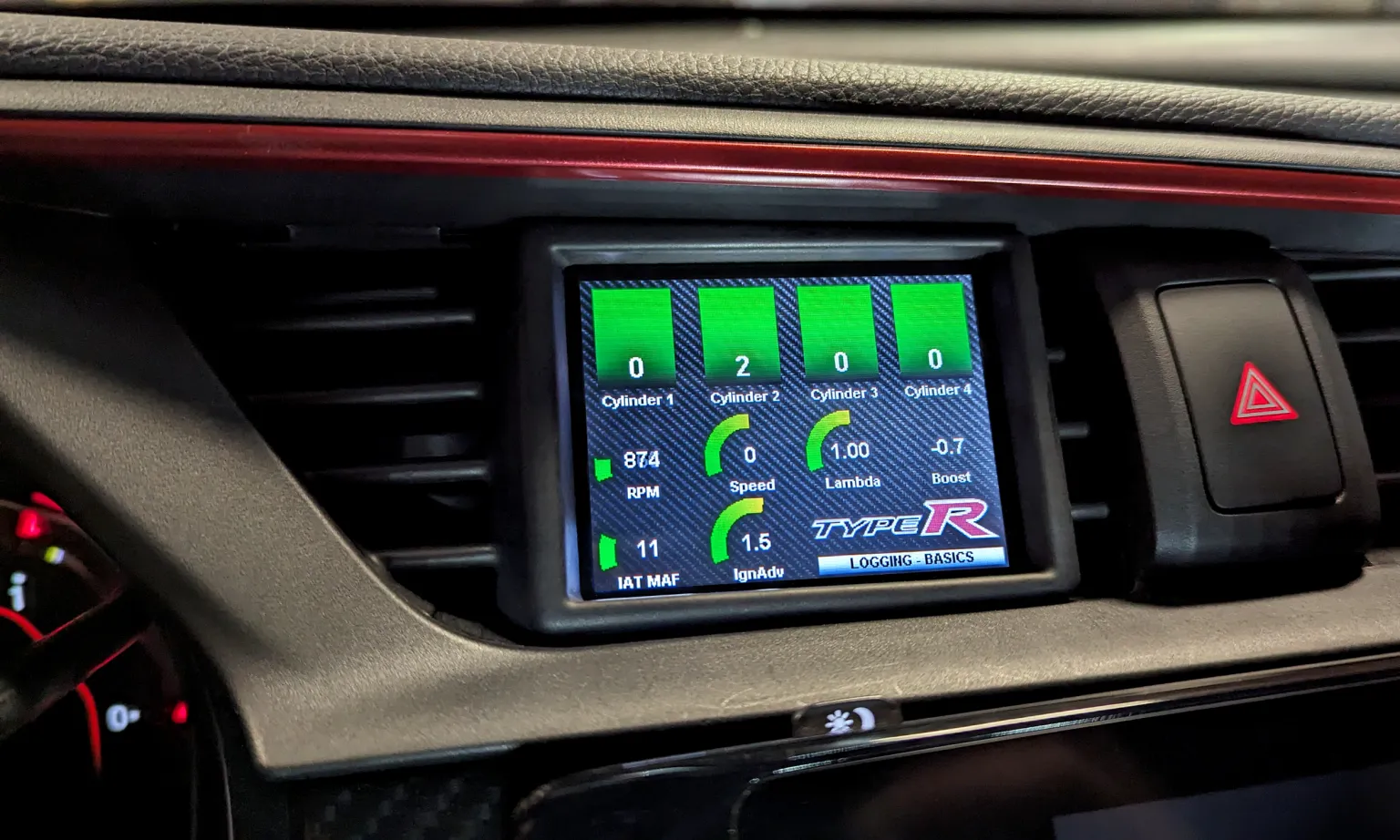

Engine speed, total ignition angle, gear, battery voltage, ignition angle reduction per cylinder

Analogue inputs:
Additional sensors can be added here: Oil temperature, petrol pressure, oil pressure, exhaust gas temperature, etc. but also an ethanol sensor (Flex Fuel)

If values are missing, they can easily be added.

ATTENTION: not every engine offers all values!

For which engines and models is the Honda FK8 display:
The display bezel fits all Honda Civic FK8 left-hand drive (LHD) vehicles. A version for RHD (right-hand drive) has also already been developed.

MFD32 Technical data:
- Dimensions: 89 x 60mm
- Hardware: 3.2" TFT screen, touchscreen, MicroSD, MicroUSB
- Symmetrical display - ideal for rotating it by 90
- Views can be freely configured directly on the display or with our DSS - Display Setup Software on the PC
- Up to 64 widgets per display
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analogue inputs
- 2x speed input
- Optional external switching flash
- Can bus switching

Supported values:
Many customers always ask: "Which values can I query from my control unit? The answer: "ALL". Our MFD32 is compatible with ISO 11898-2 and SAE J2284.
The control unit manufacturers themselves determine which values are sent via the CAN bus interface. The documentation is important here - possibly even in the form of a DBC file that can be imported directly. You can also access our extensive list of already implemented control units. This can be found in the download area. A total of up to 50 sensors can be queried if the manufacturer supports this.
Broadcast data as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as TP2.0 from VW/Audi and UDS are also available.

DSS - Display Setup Software:
With our DSS - Display Setup Software, the display can be conveniently configured on the PC. The Can Bus protocol can be customised, you can import DBC files and design the displays with your own widgets.
The log viewer downloads log files from the display. These can then be viewed and values can be individually selected and scaled.
A built-in Can Bus logger allows you to take a close look at the log. This can be used to reverse-engineer unknown Can Buses.
