Data display 3.2” MFD32 | fits Toyota Yaris GR (XP21) | CANchecked

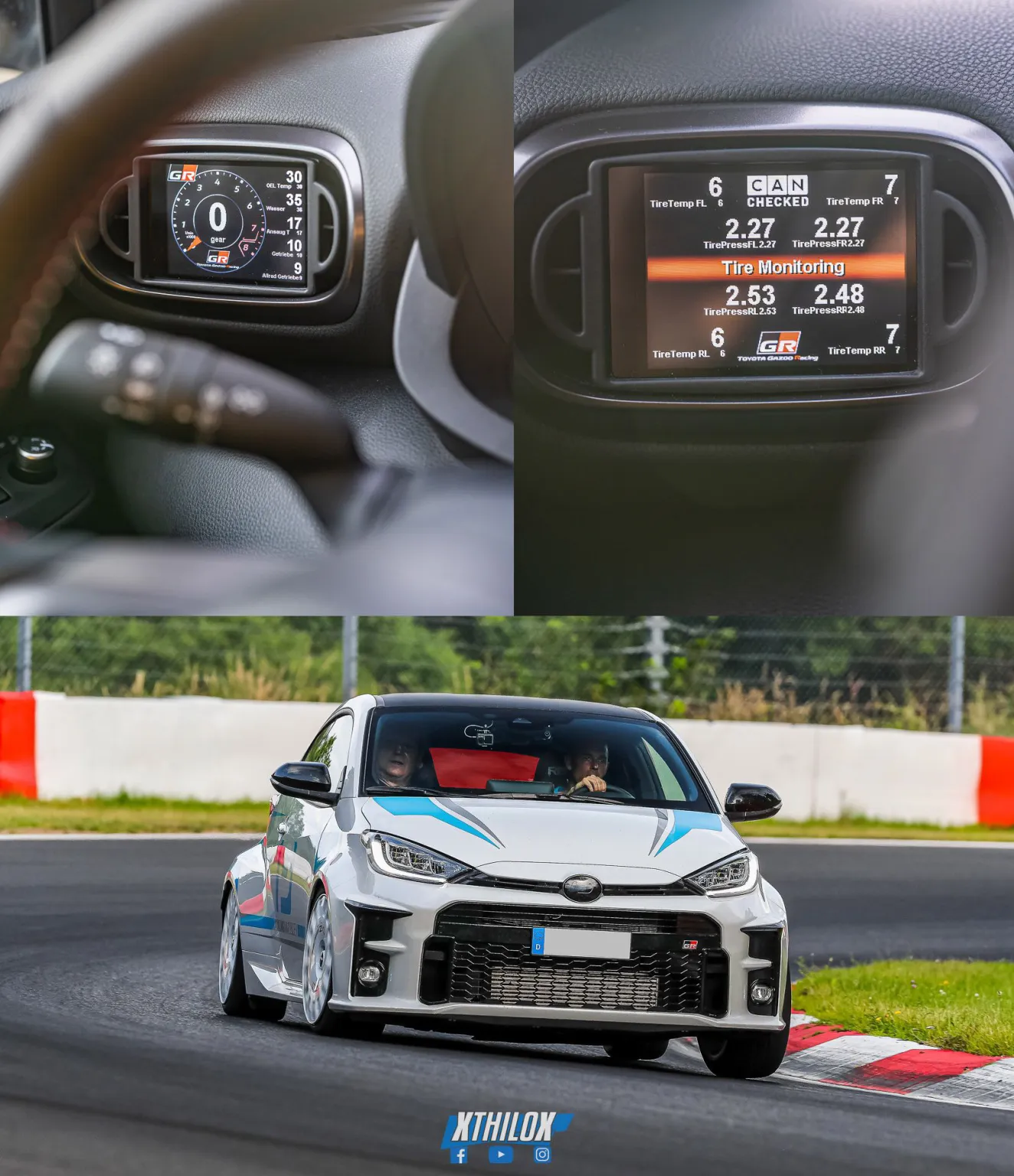

Here we present our new Toyota GR Yaris display.

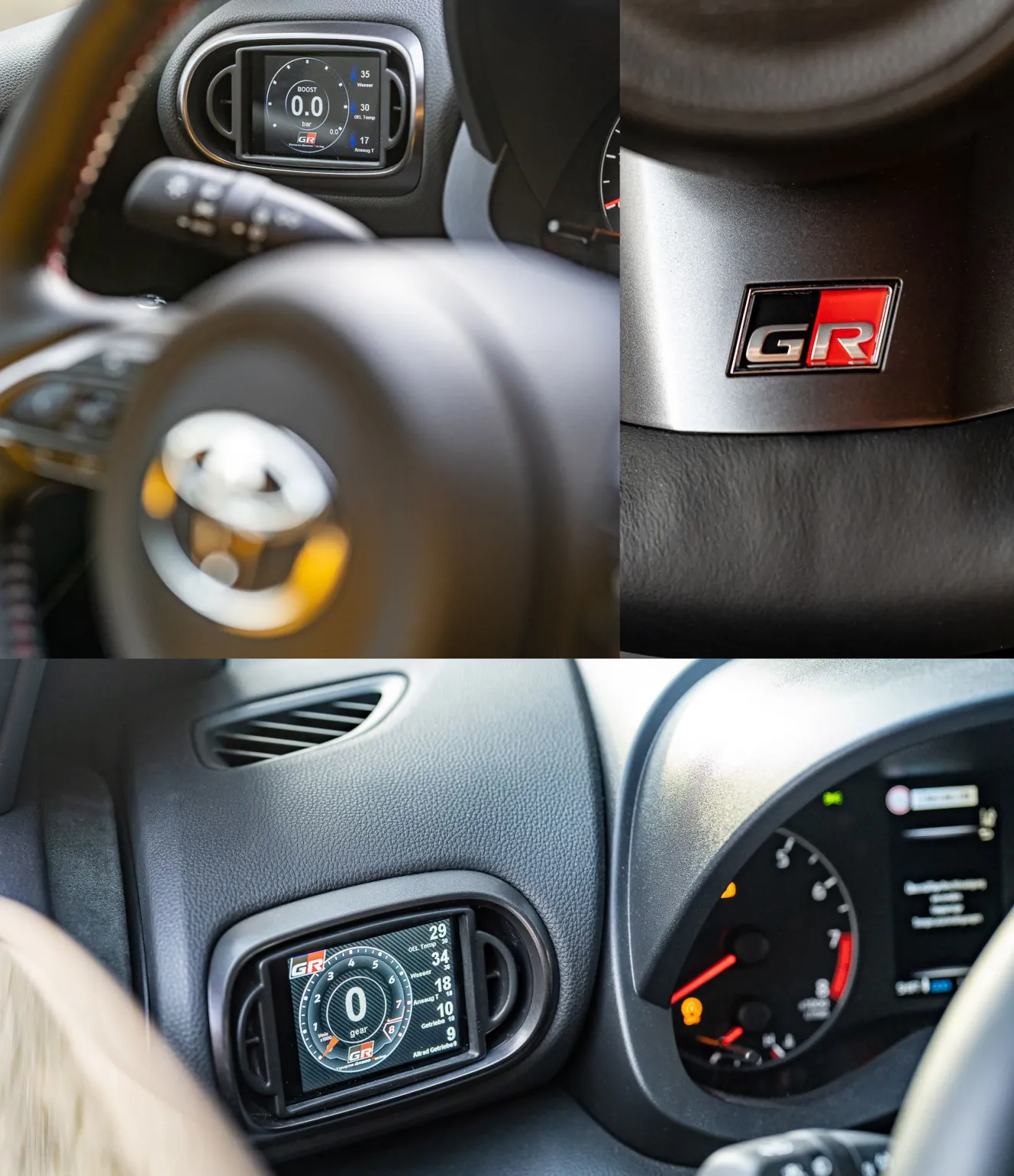

Together with some initial testers, we have developed the GR Yaris display very closely to the OEM functionality - again, perfect integration and the air vent is still functional thanks to an intelligent design.

The most important engine and vehicle data at a glance:
- Engine speed
- Water temperature
- Oil temperature and oil pressure
- Transmission temperature
- Intake air temperature
- Engine speed
- Gear (calculated from speed and engine speed)
- Lambda value / AFR

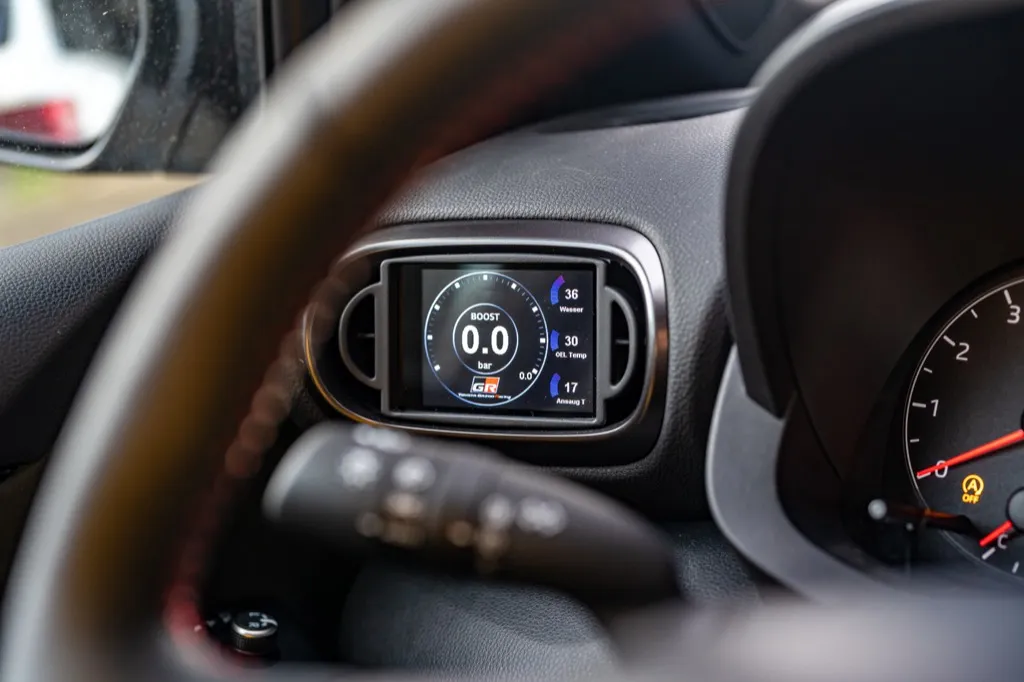

- Boost pressure ACTUAL and TARGET
- Ignition angle
- Clutch temperature of the rear differential

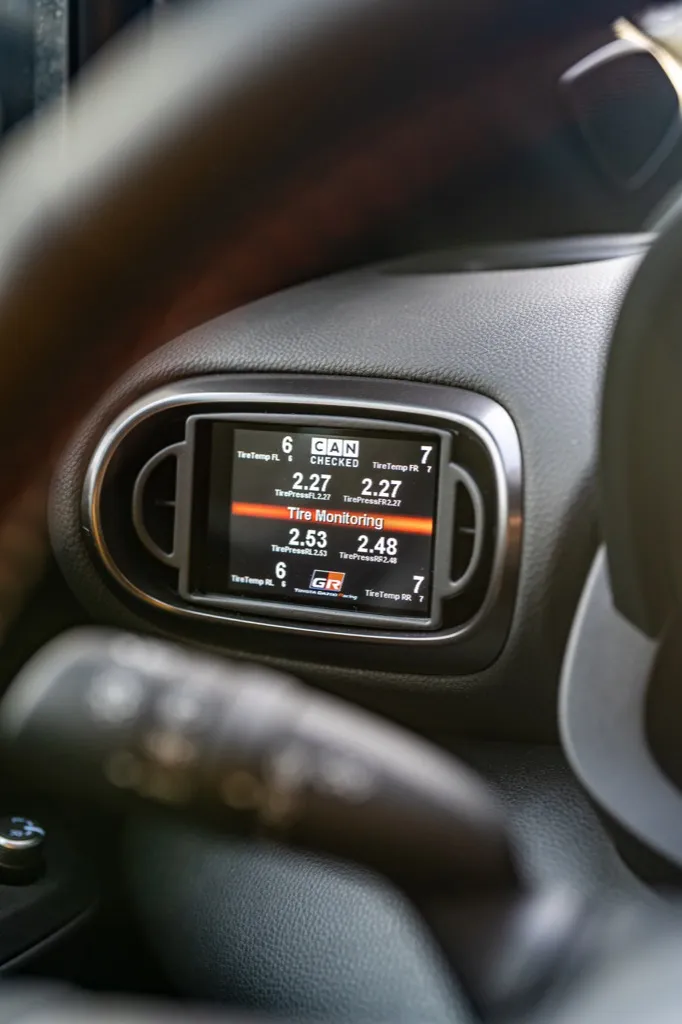

- 4x tire pressure
- 4x tire temperature

Details:
- 3.2 inch capacitive touch display with mounting frame
- OBD 2 values can be displayed (adapter cable included)
- 8GB SD memory card
- Up to 10 freely configurable display pages
- Connection via OBD2 car connector
- Two digital and four analog inputs for 0 - 5V sensors (e.g. oil pressure, fuel pressure, exhaust gas temperature (with adapter) and boost pressure)
- Integrated shift light

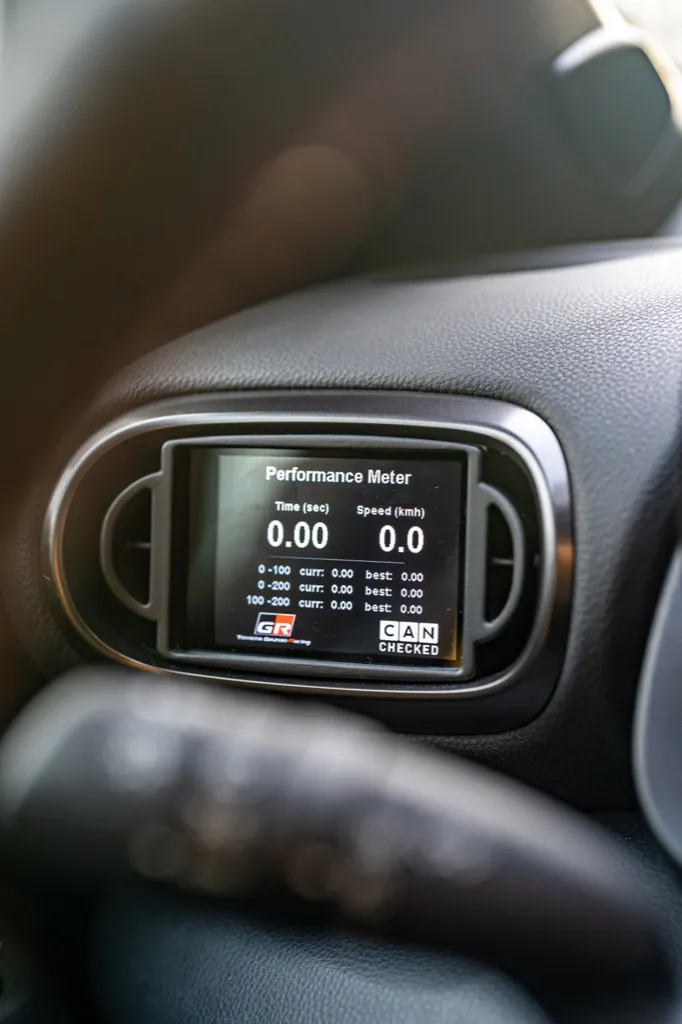

- Performance meter (e.g. measures the time from 100-200 km/h)
- Individual minimum and maximum warning values
- Pop-up function when warning values are exceeded or undercut
- Adjustable screen brightness

Surface:
- 10 pages of free configuration
- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, tableswitch, image (from SD card), number, circle display, Haldex)
- Widgets can be moved and resized via drag'n'drop
- Color customization is possible depending on the widgets

What ECU data can CANchecked read out?
We deliver a ready-made TRI file with the display as standard. All sensors that are queried are defined here, e.g:
Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG oil temperature
Pressures: Boost pressure, ambient pressure, fuel pressure, pre-feed pump pressure
Lambda / mixture: Lambda value, injection timing, short-term lambda control, long-term lambda control
Miscellaneous: RPM, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, voltage at terminal 30, oil level, torque, gearbox...
If values are missing, they can easily be added.

Motec/Syvecs configuration:
Two possibilities:
1) Order your display suitable for Motec/Syvecs
2) Change the firmware of your display to "Standard" instead of "OBD": MFD28/MFD32 software update

The appropriate TRI file should already be present on the SD card. You can find it here:
1) Swipe down on the display and go to "Setup"
2) "Can Bus"
3) "TRI/TRX File"
Select the appropriate file (-M = metric units, -I = imperial units, -G = German sensor names and metric)
Then configure the control unit to send the standard stream.

Scope of delivery:
- Vehicle-specific bracket / mounting frame for ventilation grille
- CANchecked 3.2 inch display
- Cable set
- OBD 2 adapter cable
- 8 GB Micro-SD card
- Micro-SD card adapter
- Quickstart Guide

MFD32 Technical data:
- Dimensions: 89 x 60mm
- Hardware: 3.2" TFT screen, touchscreen, MicroSD, MicroUSB
- Symmetrical display - ideal for rotating it by 90
- Views can be freely configured directly on the display or with our DSS - Display Setup Software on the PC
- Up to 64 widgets per display
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- 2x speed input
- Optional external switching flash
- Can bus switching

Supported values:
Many customers always ask: "Which values can I query from my control unit? The answer: "ALL". Our MFD32 is compatible with ISO 11898-2 and SAE J2284.
The control unit manufacturers themselves determine which values are sent via the CAN bus interface. The documentation is important here - possibly even in the form of a DBC file that can be imported directly. You can also access our extensive list of already implemented control units. This can be found in the download area. A total of up to 50 sensors can be queried if the manufacturer supports this.
Broadcast data as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as TP2.0 from VW/Audi and UDS are also available.

DSS - Display Setup Software:
With our DSS - Display Setup Software, the display can be conveniently configured on the PC. The Can Bus protocol can be customized, you can import DBC files and design the displays with your own widgets.
The log viewer downloads log files from the display. These can then be viewed and values can be individually selected and scaled.
A built-in Can Bus logger allows you to take a close look at the log. This can be used to reverse-engineer unknown Can Buses.
