Intake system Carbon | fits VAG 2.0 EA888 Gen.3 Golf 7 GTI/CS/R, Leon (5F), S3 (8V), Oxctavia RS (5E) | Eventuri

AED 4,734.30*

Prices incl. VAT plus shipping costs

Delivery time: approx. 2-6 weeks. Exact delivery time on request*.

place a request

Finanzieren Sie ihren Einkauf über die Targobank.

Product number: EV2259

Product information "Intake system Carbon | fits VAG 2.0 EA888 Gen.3 Golf 7 GTI/CS/R, Leon (5F), S3 (8V), Oxctavia RS (5E) | Eventuri"

Facts:
Material: Carbon
Manufacturer: Eventuri
Parts certificate: For this product a certificate is available for certain regions and vehicles (details below)

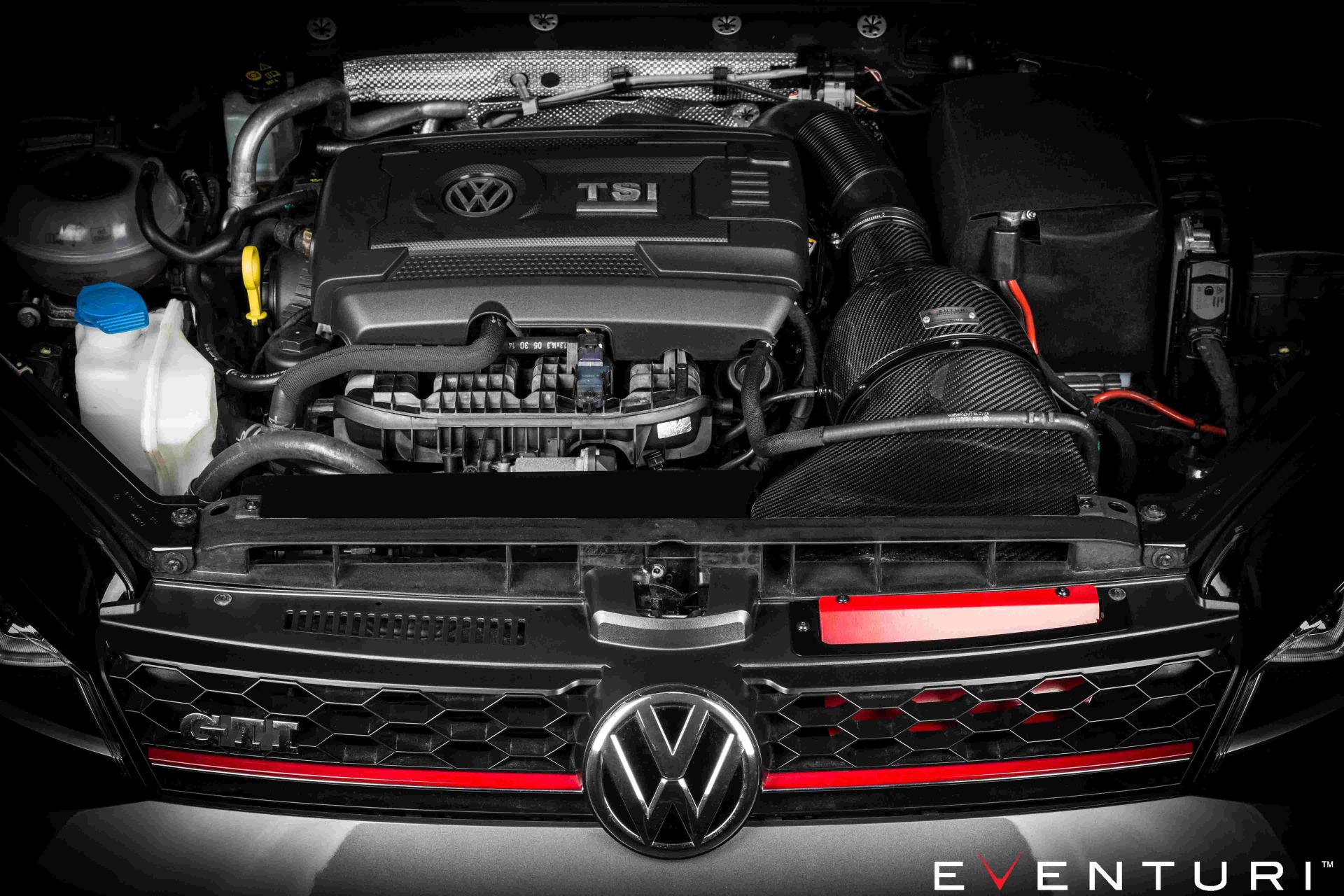

The Eventuri carbon intake system for VAG 2.0 TFSI replaces the cuboid OEM airbox and restrictive air ducts with the free-flowing Venturi air filter housing and a completely newly developed air duct.

The system is designed so that no hot air is drawn out of the engine compartment. Instead, only pure fresh air reaches the engine to generate maximum performance gains. The air routing has been designed to create an ideal transition between the round opening on the filter housing and the rectangular opening on the cover. Of particular importance is the air baffle at the front behind the radiator grille, which enables a direct supply of cold air into the intake system.

The patented Eventuri process also allows the airflow to be accelerated. This is achieved by means of the Venturi effect, in which the inverted conical filter causes the cross-section to become progressively narrower. This ultimately generates an increase in performance, torque and an improvement in response behaviour and sound.

A parts certificate is included!

Parts certificate
The manufacturer's specifications apply for installation. An existing certificate is no guarantee that the product can also be installed in the corresponding vehicle.

A certificate is available for this product for the following regions and vehicles:
* DE/AT: Vehicle registration document, field K --- CH/LI: Vehicle licence, field 24
Country Model Type approval*
DE/AT Audi A3 e1*2007/46*0607*..
DE/AT Audi A3 e1*xx/xx*0607*..
DE/AT Audi S1 e1*xx/xx*0414*..
DE/AT Audi S3 e1*xx/xx*0607*..
DE/AT Audi TT e1*xx/xx*0369*..
DE/AT SEAT Leon e9*2007/46*0094*..
DE/AT SEAT Leon e9*xx/xx*0094*..
DE/AT SEAT Leon Cupra e9*xx/xx*0094*..
DE/AT Skoda Octavia e11*xx/xx*0243*..
DE/AT Skoda Octavia e8*xx/xx*0318*..
DE/AT Skoda Octavia RS e11*xx/xx*0243*..
DE/AT VW Arteon e1*2007/46*1725*..
DE/AT VW Golf e1*2007/46*0623*..
DE/AT VW Golf e1*2007/46*0627*..
DE/AT VW Golf GTI e1*xx/xx*0623*..
DE/AT VW Golf GTI Clubsport e1*xx/xx*0623*..
DE/AT VW Golf GTI Performance e1*xx/xx*0623*..
DE/AT VW Golf R e1*xx/xx*0623*..
DE/AT VW Golf R Variant e1*xx/xx*0627*..
DE/AT VW Polo GTI e1*xx/xx*0510*..
DE/AT VW Scirocco e1*xx/xx*0471*..
DE/AT VW Tiguan e1*xx/xx*0450*..

Compatible vehicles:

Vehicle	Vehicle type	Power	Engine capacity	Engine type
Audi A3 (8V)	2.0 TFSI / quattro 2.0 TFSI	140kW / 190hp 162kW / 220hp	1984cm³	CZPB CHHB
Audi A3 (8V)	S3 quattro S3 quattro S3 quattro S3 quattro S3 quattro	206kW / 280hp 210kW / 286hp 213kW / 290hp 221kW / 300hp 228kW / 310hp	1984cm³	CJXB CJXF CJXD CJXC CJXG
Audi TT (8J1/8S)	2.0 TFSI / quattro	169kW / 230hp	1984cm³	CHHC
Audi TT (8J1/8S)	TTS quattro TTS quattro TTS quattro	210kW / 286hp 215kW / 292hp 228kW / 310hp	1984cm³	CJXF CYFB CJXG
Seat Leon (5F)	2.0 Cupra 2.0 Cupra 2.0 Cupra 2.0 Cupra	195kW / 265hp 206kW / 280hp 213kW / 290hp 221kW / 300hp	1984cm³	CJXE CJXA CJXH CJXC
Seat Leon (5F)	2.0 Cupra R	228kW / 310hp	1984cm³	CJXG
Skoda Octavia (5E)	2.0 TSI RS 2.0 TSI RS	162kW / 220hp 169kW / 230hp	1984cm³	CHHB CHHA
VW Golf 7	GTI	162kW / 220hp	1984cm³	CHHB, CXDA, CXCB, CNTC
VW Golf 7	GTI Performance	169kW / 230hp	1984cm³	CHHA
VW Golf 7	GTI Clubsport GTI Clubsport S	195kW / 265hp 228KW / 310hp	1984cm³	CJXE CJXG
VW Golf 7	R R R R R 360S	206kW / 280hp 213KW / 290hp 221KW / 300hp 228kW / 310hp 265kW / 360hp	1984cm³	CJXB CJXD CJXC CJXG CJXC
VW Golf 7.5 Facelift	GTI	169kW / 230hp	1984cm³	CHHA
VW Golf 7.5 Facelift	GTI TCR	213kW / 290hp	1984cm³	CJXH
