KW V4 Clubsport coilover suspension | fits BMW 2/3 Series (G42/G20) | 397202CL

AED 0.00*

Delivery time: Availability on request at Aulitzky Tuning*

Optional: Installation on site at Aulitzky Tuning

- Installation and removal of coilover suspension
- Wheel camber correction kit
- Wheel alignment
- Calibration of assistance systems/lights
- Individual suspension tuning according to customer requirements
- Individual test drive and adjustment together with the customer

Assembly at location DE-91564 Neuendettelsau

Reset choice

AED 0.00*

place a request

Finanzieren Sie ihren Einkauf über die Targobank.

Product number: KW397202CL

Product information "KW V4 Clubsport coilover suspension | fits BMW 2/3 Series (G42/G20) | 397202CL"

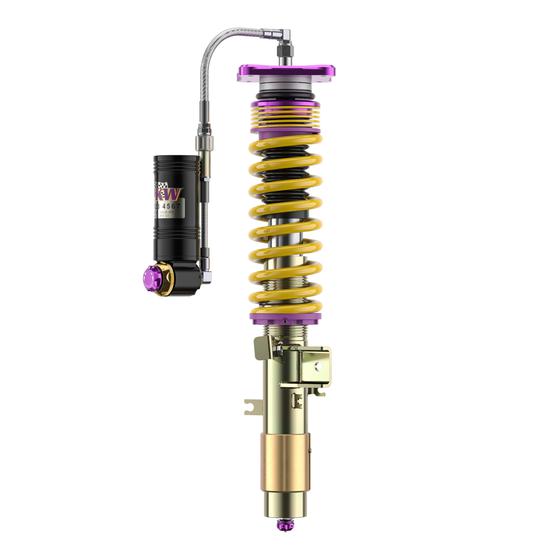

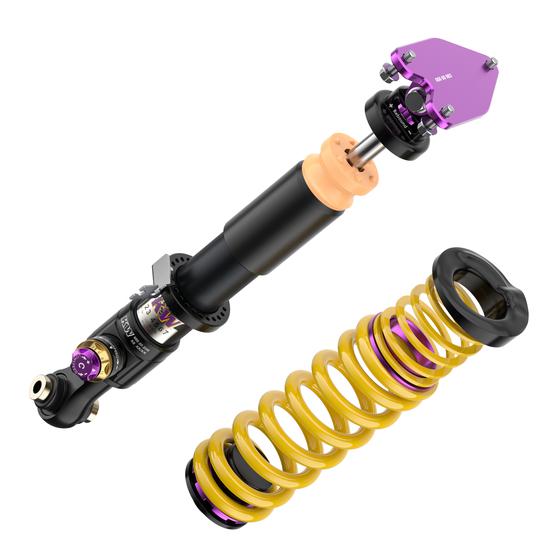

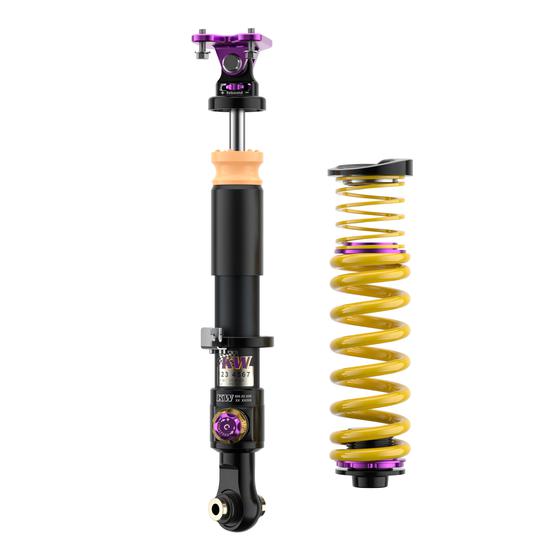

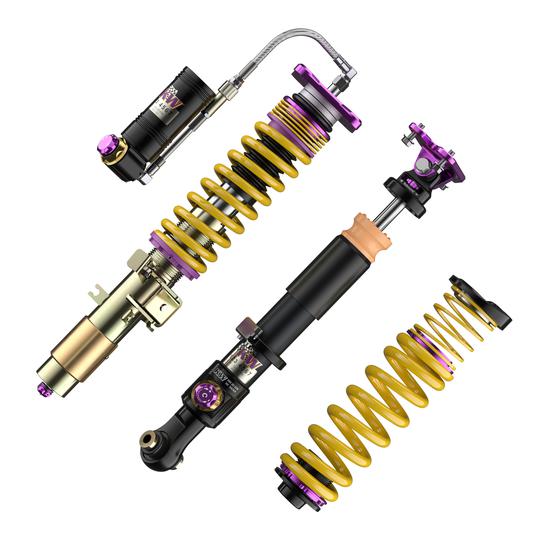

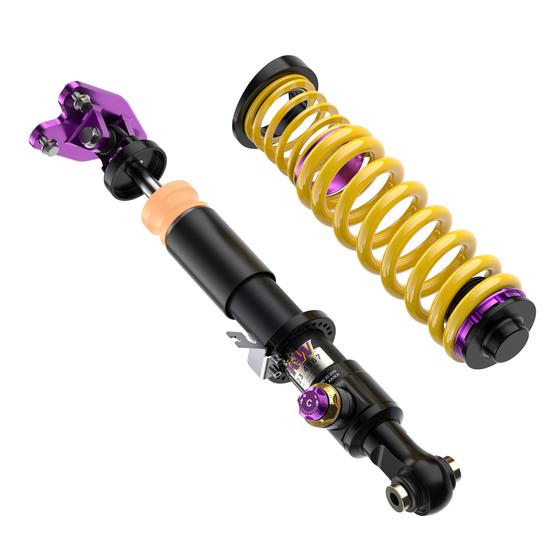

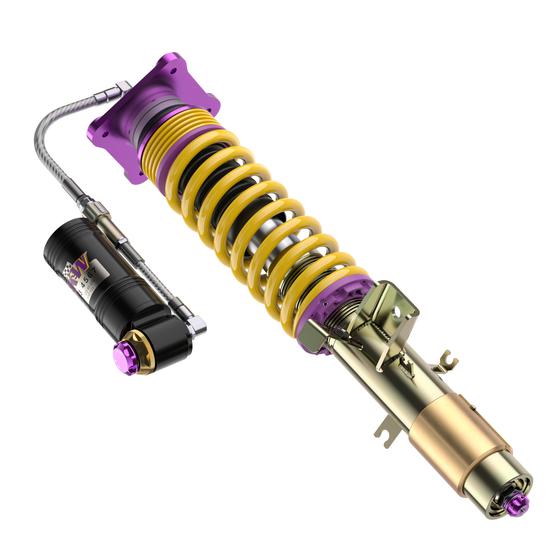

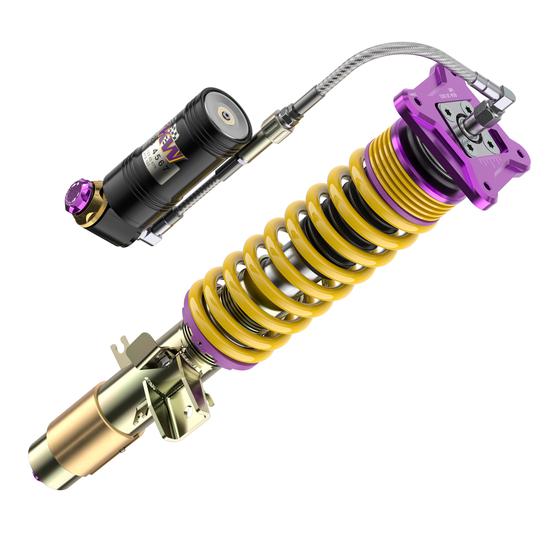

KW V4 Clubsport coilover suspension incl. support bearings

With an uncompromising technology transfer from racing to the road, the KW Clubsport coilovers convince.
The KW Clubsport coilovers convince with their uncompromising combination of high-end racing technology with maintenance-free KW original equipment components and expertises.
This gives you the ideal accessories to realise the full potential of your sports car at trackdays, sports driver training courses, tourist drives on Grand Prix circuits and on the Nürburgring Nordschleife.

Developed for the toughest racetrack in the world: the Nürburgring Nordschleife
Even in their basic set-up, KW Clubsport coilovers are tuned to the different track surfaces, steep bends, jumps and chicanes of the 20.8 kilometre long Nürburgring Nordschleife. After all, as one of the most successful suspension manufacturers and suppliers in motorsport, we are at home on the Nordschleife.
In the VLN Endurance Championship alone, we equip over 70 racing teams and, as a suspension manufacturer, have supported six overall victories at the ADAC Zurich 24h Race Nürburgring in ten years. The winner of the ADAC GT Masters 2011 also relies on our racing expertise, from which the KW Clubsport coilovers benefit.
The basic setup of the KW V3 Clubsport and KW V4 Clubsport with separate expansion tank, which is perfectly adapted to the Nordschleife, allows you to customise your sports car even more individually to the desired sports tyre setup thanks to the numerous adjustment options.

KW V4 Clubsport coilover suspension
The vehicle-specific basic setup of the KW V4 Clubsport, developed in numerous test and measurement drives on the Nordschleife and the KW 7-post driving dynamics test bench, can be further adapted to your wheel loads, vehicle weight and the modified body stiffness, for example with a bolted cage, welded-in safety cell or strut braces, using the click adjustment. Similar to the KW Competition racing suspensions used in international motorsport, the KW V4 Clubsport coilover suspension allows the compression damping to be fine-tuned separately in the low-speed and high-speed range. The click adjustment of the patented KW two-valve control takes place directly on the expansion tank.

You can vary the low-speed compression damping by hand with six precise clicks on the purple-coloured adjustment wheel. The gold-coloured adjustment wheel underneath allows you to change the high-speed compression stage of the recommended basic setup for your track day with 14 exact clicks. Independently of this, you still have 16 clicks at your disposal to noticeably adjust the rebound setting. If you want to tune the KW V4 Clubsport coilover suspension, which is available with an expert opinion, more comfortably for your journey to the Nordschleife or other race track for driving on the motorway, simply reduce the rebound forces via the rebound damping.

- freely adjustable damping technology with 16 precise clicks in the rebound stage
- adjustable compression damping with 6 clicks in the low-speed range and 14 exact clicks in the high-speed range
- infinitely variable lowering
- Tested adjustment range
- high-quality components for a long service life
- unique, independently acting damping force adjustment available with aluminium Unibal support bearings for technically sensible applications

Setup: Application range and damper tuning
The KW V4 Clubsport coilover suspensions impress with their vehicle-specific setup for trackday events on the Nürburgring Nordschleife, as well as the possibility of quickly adapting these suspensions to other racetracks and individual performance sports cars.

Please note the conditions and instructions for this product:
- VA + HA height-adjustable (VA coilover struts, HA springs with height adjustment + dampers)
- Vehicles with electronic damper control must be decommissioned. Vehicle-specific KW decommissioning kits can be found in the accessories table.
- The dampers have easy-to-operate adjustment wheels. Due to the design, the rebound stage can only be adjusted if the piston rod is accessible.
- Clubsport suspension with support bearing: only available with VA support bearing
- V4 / V5 suspension struts / dampers made of aluminium or combined on each axle made of galvanised steel (VA) and aluminium (HA)

Technical information:
Lowering VA/HA (mm): 40-60/40-60
Version: V4 Clubsport
Hardness adjustment: Rebound and compression damping
Material: VA: galvanised steel / HA: aluminium
Adjustment VA/HA: thread/thread
Approval: Parts certificate (§19.3)

Compatible vehicles:
Manufacturer Model Version Body Fuel Performance Displacement Cylinder Drive
BMW 2 Series Coupe (G42, G87) 08/2021- 218 i Coupe petrol 115 KW 1998 ccm 4 rear-wheel drive
BMW 2 Series Coupe (G42, G87) 08/2021- 220 d Mild-Hybrid Coupe Diesel/Electric 140 KW 1995 ccm 4 rear-wheel drive
BMW 2 Series Coupe (G42, G87) 08/2021- 220 i Coupe petrol 135 KW 1998 ccm 4 rear-wheel drive
BMW 2 Series Coupe (G42, G87) 08/2021- 230 i Coupe petrol 180 KW 1998 cc 4 rear-wheel drive
BMW 2 Series Coupe (G42, G87) 08/2021- M240 i Coupe petrol 275 KW 2998 ccm 6 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 316 d notchback diesel 85 KW 1995 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 316 d notchback diesel 90 KW 1995 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 316 d Mild-Hybrid notchback diesel/electric 85 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 316 d Mild-Hybrid notchback diesel/electric 90 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 318 d notchback diesel 100 KW 1995 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 318 d notchback diesel 110 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 318 d Mild-Hybrid notchback diesel/electric 100 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 318 d Mild-Hybrid notchback diesel/electric 110 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 318 i notchback petrol 115 KW 1998 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 d notchback diesel 120 KW 1995 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 d notchback diesel 140 KW 1995 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 d Mild-Hybrid notchback diesel/electric 120 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 d Mild-Hybrid notchback diesel/electric 140 KW 1995 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 i notchback petrol 135 KW 1998 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 i 1.6 notchback petrol 125 KW 1597 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 320 Ld notchback diesel 140 KW 1995 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 330 d notchback diesel 195 KW 2993 cc 6 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 330 d Mild-Hybrid notchback diesel/electric 210 KW 2993 ccm 6 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 330 i notchback petrol 180 KW 1998 ccm 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 330 i notchback petrol 190 KW 1998 cc 4 rear-wheel drive
BMW 3 Series (G20, G80) G3L 11/2018- 330 Li notchback petrol 190 KW 1998 ccm 4 rear-wheel drive
