KW V4 coilover suspension | fits Mercedes-Benz C63/ C63S AMG (C205/A205) | 3A725089

AED 0.00*

Delivery time: Availability on request at Aulitzky Tuning*

Optional: Installation on site at Aulitzky Tuning

- Installation and removal of coilover suspension
- Wheel camber correction kit
- Wheel alignment
- Calibration of assistance systems/lights
- Individual suspension tuning according to customer requirements
- Individual test drive and adjustment together with the customer

Assembly at location DE-91564 Neuendettelsau

Reset choice

AED 0.00*

place a request

Finanzieren Sie ihren Einkauf über die Targobank.

Product number: KW3A725089

Product information "KW V4 coilover suspension | fits Mercedes-Benz C63/ C63S AMG (C205/A205) | 3A725089"

KW V4 coilover suspension incl. decommissioning for electric dampers - State of the Art

With the new KW V4 with its stainless steel or aluminium coilover struts, you give your super sports car the necessary reserves to further increase the driving dynamics. The three-way adjustable high-performance dampers with their independent rebound adjustment as well as low-speed and high-speed compression damping are based on the successful racing technology of the multiple overall winner of the ADAC Zurich 24h Race Nürburgring and, depending on the vehicle-specific version, have aluminium support bearings. The new KW V4 is developed exclusively for selected high-performance vehicles, which can be moved more safely at the limits of driving dynamics thanks to our KW suspension technology.

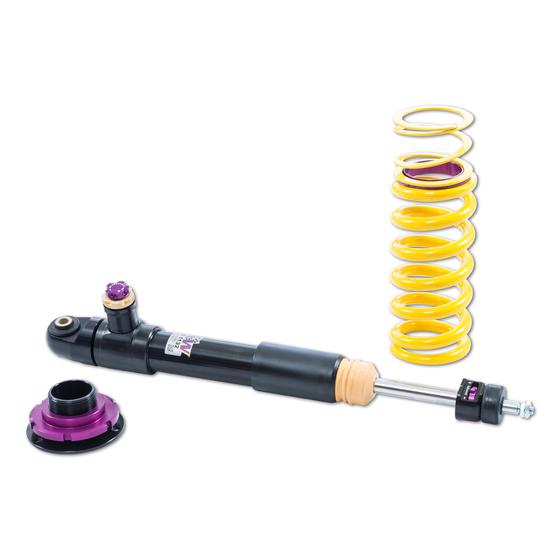

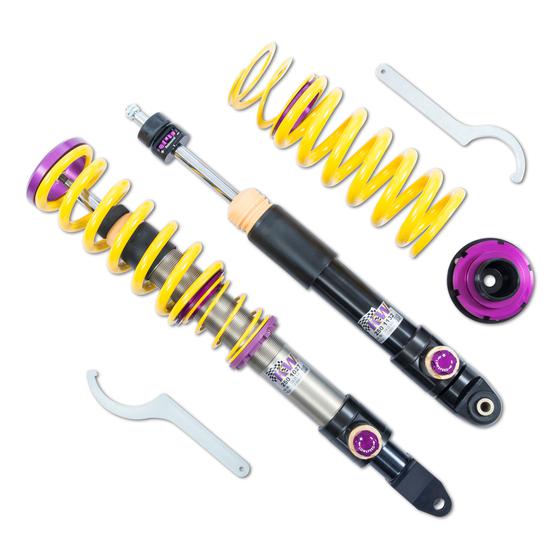

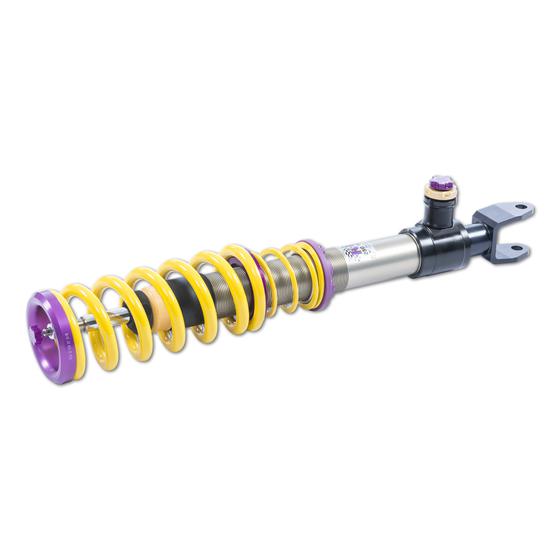

- 3-way adjustable high-performance dampers with stainless steel coilover struts
- Separate and independent damper adjustment in:
- Rebound damping with 16 exact clicks + (firmer) / - (more comfortable)

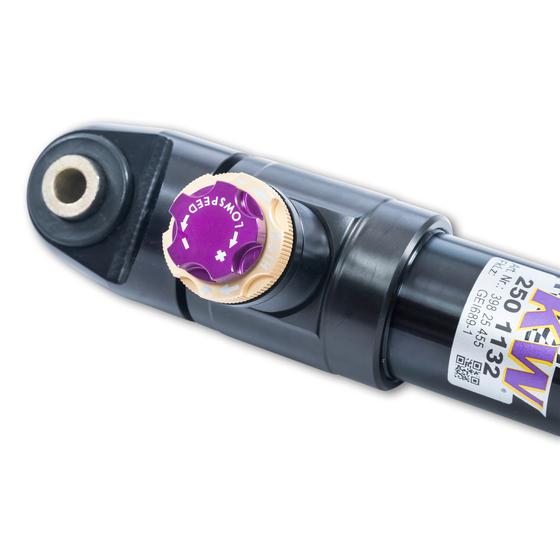

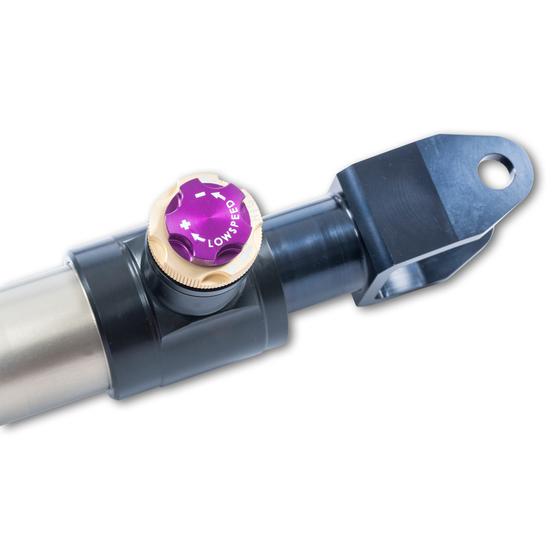

- Low-speed compression damping with 6 exact clicks + (firmer) / - (more comfortable)
- High-speed compression damping with 14 exact clicks + (firmer) / - (more comfortable)
- Two basic factory set-ups with comfort setting and performance setting
- Depending on the vehicle, aluminium support bearings are an integral part of the scope of delivery

Please note the conditions and instructions for this product:
- VA + HA height-adjustable (VA coilover struts, HA springs with height adjustment + dampers)

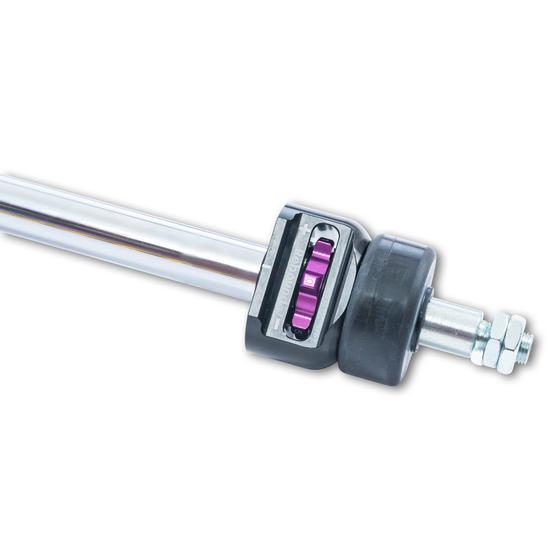

- Dampers have easy-to-operate adjustment wheels. Due to the design, the rebound stage can only be adjusted when the piston rod is accessible.
- Electronic damper control must be deactivated. Electronic kit for decommissioning is included in the scope of delivery.
- Variant 4 / Variant 5 Suspension struts / dampers made of aluminium or combined on each axle made of aluminium and stainless steel
- In the case of increased wheel camber values on the front axle, we recommend the continuously adjustable camber correction for the designated vehicles (see KW accessories).

Technical information:
Lowering VA/HA (mm): 5-35/15-45
Version: V4
Hardness adjustment: Rebound and compression damping
Material: Aluminium
Adjustment VA/HA: thread/thread
Approval: Parts certificate (§19.3)

Compatible vehicles:
Manufacturer Model Version Body Fuel Performance Displacement Cylinder Drive
MERCEDES-BENZ C-KLASSE Cabriolet (A205) 204, 204 AMG 06/2016- AMG C 63 (205.486) Cabriolet Petrol 350 KW 3982 ccm 8 Rear-wheel drive
MERCEDES-BENZ C-CLASS Cabriolet (A205) 204, 204 AMG 06/2016- AMG C 63 S (205.487) Cabriolet Petrol 375 KW 3982 ccm 8 Rear-wheel drive
MERCEDES-BENZ C-CLASSE Coupe (C205) 204, 204 AMG 10/2015- AMG C 63 (205.386) Coupe Petrol 350 KW 3982 ccm 8 Rear-wheel drive
MERCEDES-BENZ C-KLASSE Coupe (C205) 204, 204 AMG 10/2015- AMG C 63 S (205.387) Coupe Petrol 375 KW 3982 ccm 8 Rear-wheel drive
MERCEDES-BENZ G-CLASS (W463) 463A 01/2018- G 500 (463.260, 463.261) Off-road vehicle closed petrol 310 KW 3982 ccm 8 all-wheel drive
