Product number: KW3A7102AM

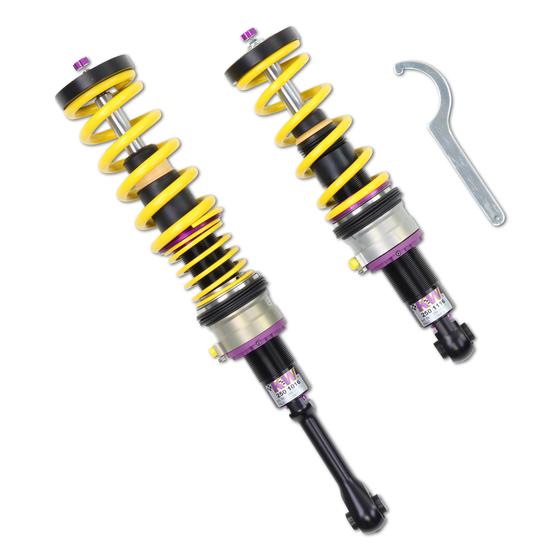

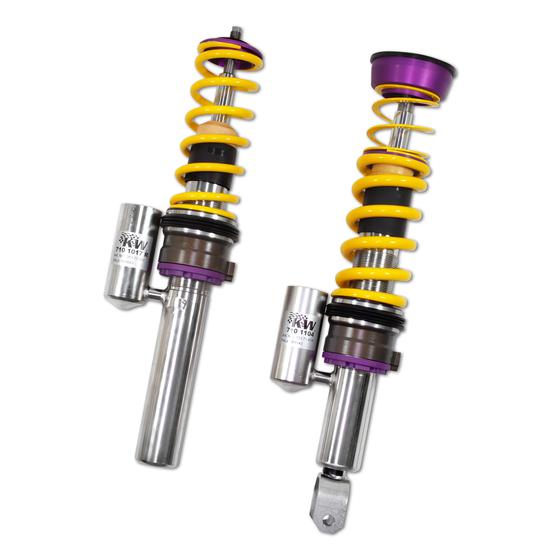

Product information "KW V4 coilover suspension with HLS2 | fits Audi R8 (4S) incl. Spyder | 3A7102AM"

KW HLS Hydraulic Lift System

For easy driving over various obstacles for sporty cars with low ground clearance

More ground clearance at the touch of a button
With the HLS lift system, you can raise your sports car or lowered vehicle to safely drive over obstacles such as speed bumps, speed humps, level crossings, construction sites, garage and underground parking garage entrances. Depending on the version of the HLS lift system installed, either the front axle or both axles of your vehicle are raised hydraulically by up to 45 millimetres.
This prevents your aerodynamic components, underbody protection or even the oil pan from being damaged. Depending on the vehicle type and model, the lift system is available as a vehicle-specific solution with or without KW coilover suspension. If your vehicle is not yet included in our KW HLS product range, our engineers have also developed a universal lift system.

Convincing solution made by KW
Our HLS is available as an application-specific solution for a wide range of super sports cars and even for compact models. All the components supplied, such as the hydraulic lines and hydraulic pump, are adapted to your vehicle and therefore all our components harmonize perfectly with your sports car. Whether you combine the HLS with your standard suspension or with our KW coilovers in stainless steel, which are among the world's top aftermarket products, is up to you to decide. Alpina, BMW M, Manthey, Mercedes-Benz AMG, Novitec Rosso and many other well-known companies in the international automotive industry have already opted for KW.
The "HLS 2" version of the lift kit, which is only installed on the front axle, allows you to lift the front of your sports car. If you opt for the "HLS 4" variant, your entire vehicle will be lifted. For this purpose, a hydraulic cylinder is mounted between the spring plate and spring on each KW coilover strut. The great advantage of the hydraulic system is that there is no compression (movement) of the extended cylinder unit during driving (no unwanted additional suspension) and therefore the driving dynamics cannot be impaired. The scope of delivery for all HLS Lift Kit variants also includes a control unit that is connected to the vehicle's on-board electronics. As a result, the vehicle is automatically lowered to the original depth of the KW coilover suspension or your standard suspension from a certain speed.

- as a complete solution including KW coilover suspension
- or available as a retrofit kit
- Actuation from inside the vehicle via button with LED position indicator or optionally via radio remote control
- Can be activated while driving (up to 80 km/h)
- Quick lifting in 4-5 seconds with HLS 2
- Absolutely corrosion-resistant (coated aluminum cylinder components)

Please note the conditions and instructions for this product:
- VA + HA height-adjustable (threaded struts)
- Vehicles with electronic damper control must be decommissioned. Vehicle-specific KW decommissioning kits can be found in the accessories table.
- The dampers have easy-to-use adjustment wheels. Due to the design, the rebound stage can only be adjusted if the piston rod is accessible.
- Aluminum struts (no Inox-line)

Technical info:
Lowering VA/HA (mm): 10-25/15-35
Version: HLS 2
Mounting position hydraulics: VA
Material coilover suspension: aluminum
Height adjustment: rebound and compression
Adjustment VA/HA: thread/thread
Approval: parts certificate (§19.3)

Compatible vehicles:
Manufacturer Model Version Body Fuel Performance Displacement Cylinder Drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI Coupe Petrol 419 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5. 2 FSI quattro Coupe Petrol 397 KW 5204 ccm 10 All-wheel
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI quattro Coupe Petrol 419 KW 5204 ccm 10 All-wheel
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI quattro Coupe Petrol 449 KW 5204 ccm 10 All-wheel
AUDI R8 (4S) 4S3, 42 07/2015- 5. 2 FSI quattro Coupe Petrol 456 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI RWS Coupe Petrol 397 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5. 2 GT Coupe Petrol 456 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI Cabriolet Petrol 419 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5. 2 FSI quattro Cabriolet Petrol 397 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 419 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 449 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 456 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI RWS Cabriolet Petrol 397 KW 5204 ccm 10 Rear-wheel drive
