KW V5 coilover suspension | fits Audi R8 (4S) incl. Spyder | 309100AM | 309100AN

From AED 41,785.42*

Delivery time: Availability on request at Aulitzky Tuning*

Does the vehicle have electronic damper control?

YES

Optional: Installation on site at Aulitzky Tuning

- Installation and removal of coilover suspension
- Wheel camber correction kit
- Wheel alignment
- Calibration of assistance systems/lights
- Individual suspension tuning according to customer requirements
- Individual test drive and adjustment together with the customer

Assembly at location DE-91564 Neuendettelsau

Reset choice

AED 0.00*

Finanzieren Sie ihren Einkauf über die Targobank.

Product number: KW309100AMN

Product information "KW V5 coilover suspension | fits Audi R8 (4S) incl. Spyder | 309100AM | 309100AN"

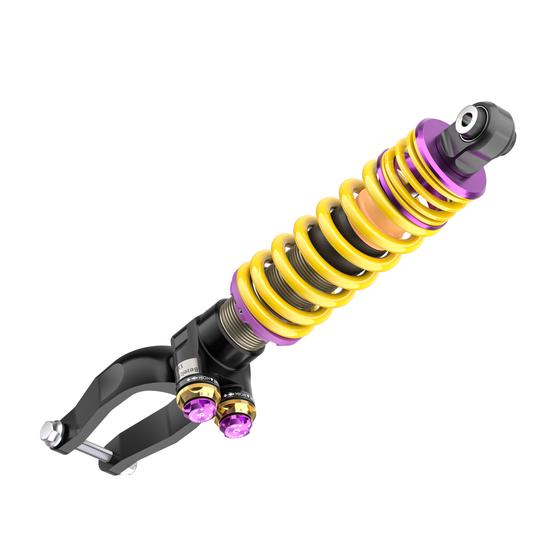

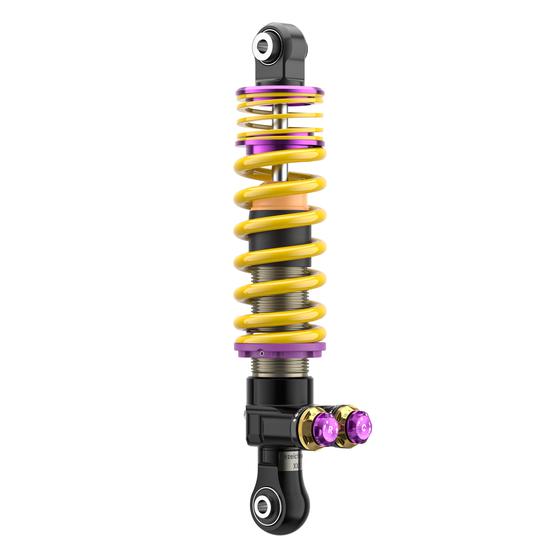

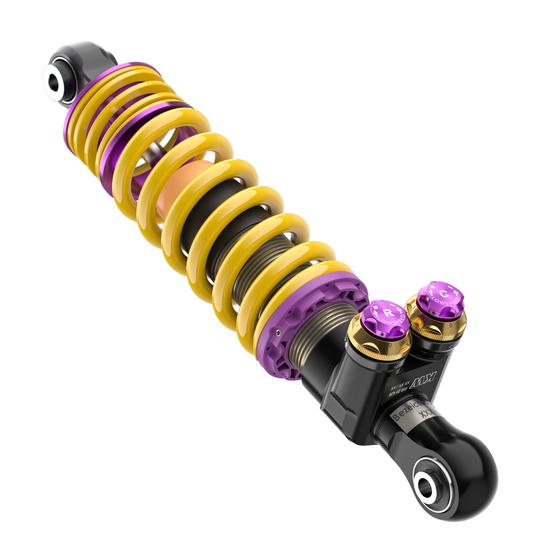

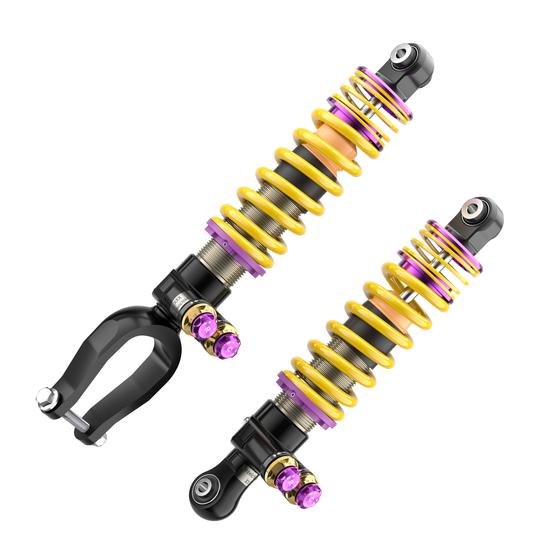

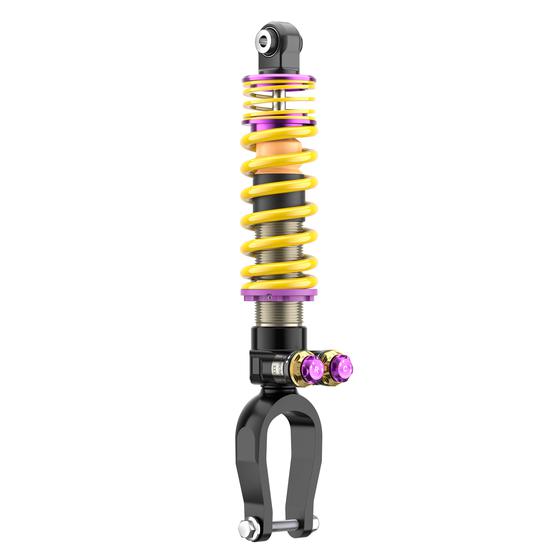

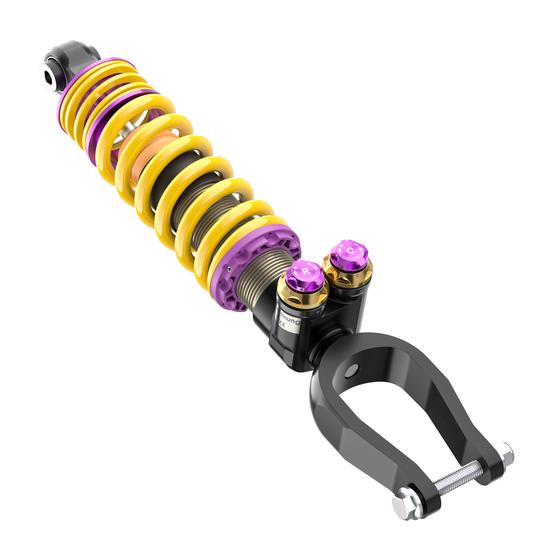

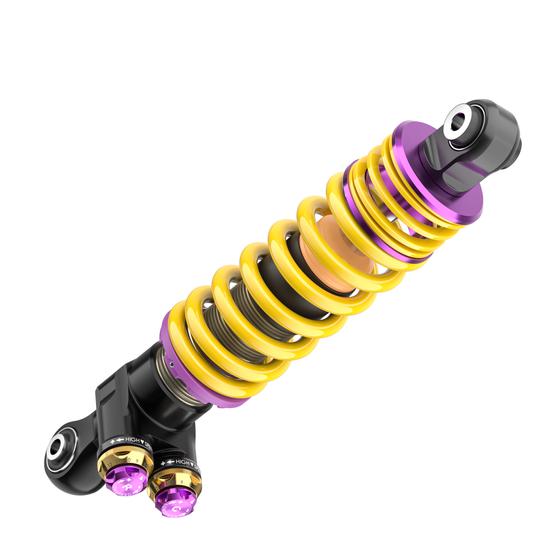

KW V5 coilover suspension

With the new KW V5 coilover suspension, KW relies on its successful motorsport suspension technology with displacement pistons and modular as well as series-connected damper valves. The KW V5 convinces in sports cars and super sports cars with a precise and fast damping without time delay. Even with short suspension travel, steering movements and minimal road bumps, the dampers and valves react directly.

Compared to conventional coilover and sports suspensions in original equipment and the aftermarket, the V5 utilises our successful damper technology with displacement pistons and modular and series-connected damper valves. In addition, it offers the freedom to further adjust the standard side-mounted valves for the low and high-speed forces of the compression and rebound damping with 14 clicks each exactly to the personally desired driving behaviour. With the KW V5 coilover suspension, a continuously adjustable maximum lowering can also be selected.

- 4-way adjustable high-performance dampers with aluminium coilover struts
- Solid piston (displacement piston) technology
- Separate and independent damper adjustment in:
- Lowspeed rebound damping with 14 exact clicks + (firmer) / - (more comfortable)
- High-speed rebound damping with 14 exact clicks + (firmer) / - (more comfortable)
- Low-speed compression damping with 14 exact clicks + (firmer) / - (more comfortable)
- High-speed compression damping with 14 exact clicks + (firmer) / - (more comfortable)
- Two basic set-ups ex works with comfort setting and performance setting

Please note the conditions and instructions for this product:
- VA + HA height-adjustable (coilover struts)
- For vehicles with electronic damper control, this must be decommissioned. Electronic kit for decommissioning is included in the scope of delivery for item variant "YES".
- The dampers have easy-to-operate adjustment wheels. Due to the design, the rebound stage can only be adjusted if the piston rod is accessible.
- Aluminium shock absorbers (no Inox-line)

Technical information:
Lowering VA/HA (mm): 5-25/15-35
Version: V5
Hardness adjustment: Rebound and compression stage
Material: Aluminium
Adjustment VA/HA: thread/thread
Approval: Parts certificate (§19.3)

Compatible vehicles:
Manufacturer Model Version Body Fuel Performance Displacement Cylinder Drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI Coupe petrol 419 KW 5204 ccm 10 rear-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI quattro Coupe Petrol 397 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI quattro Coupe Petrol 419 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI quattro Coupe Petrol 449 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI quattro Coupe Petrol 456 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 FSI RWS Coupe Petrol 397 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) 4S3, 42 07/2015- 5.2 GT Coupe Petrol 456 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI Cabriolet Petrol 419 KW 5204 ccm 10 Rear-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 397 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 419 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 449 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI quattro Cabriolet Petrol 456 KW 5204 ccm 10 All-wheel drive
AUDI R8 (4S) Spyder 4S9, 42 05/2016- 5.2 FSI RWS Cabriolet Petrol 397 KW 5204 ccm 10 Rear-wheel drive
