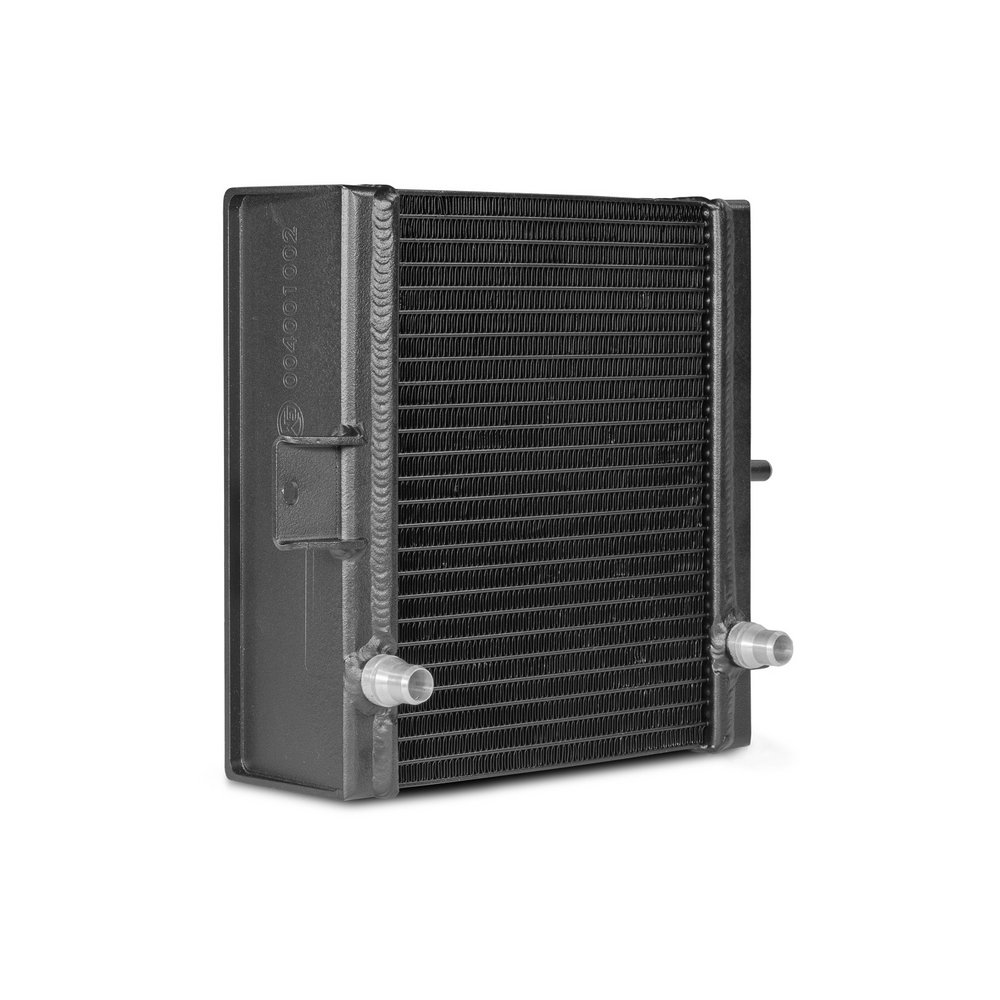

Product information "Side water cooler | fits BMW M3/M4 incl. Competition/CS/GTS (F80/F82/F83) S55 | Wagner Tuning"
Suitable for the following models: BMW F80 M3 317kW/431hp BMW F80 M3 Competition 331kW/450hp BMW F80 M3 CS 338kW/460hp BMW F82/F83 M4 317kW/431hp BMW F82/F83 M4 Competition 331kW/450hp BMW F82 M4 CS 338kW/460hp BMW F82 M4 GTS 368kW/500hp
With parts certificate!
The 3.0 liter S55B30 turbo engine is equipped with an indirect charge air cooling circuit. This means that the charge air is not cooled using the ambient air as a cooling medium (as usual), but with the aid of a separate cooling water circuit. A reduction in the cooling water temperature can therefore be directly equated with an improved cooling performance of the charge air. This is precisely where the advantages of the WAGNERTUNING upgrade water coolers come into play. The newly developed competition racing nets of the WAGNERTUNING high-performance water coolers increase the radiator volume of the standard water coolers by 89% for the front and 94% for the side. The ratio between the inner and outer cooling surface generates maximum heat transfer and at the same time allows the adjacent components (e.g. the engine water cooler located behind it) sufficient air flow for heat exchange. Furthermore, the increased cooling water volume allows the entire system thermal to be kept at a lower level over a longer period of time.
All WAGNERTUNING water coolers are equipped with a thermally conductive anti-corrosion coating to ensure a long-lasting cooling effect. The installation of the system is also uncomplicated and plug & play with the help of our installation instructions.
Dimensions OEM water cooler (side): 250 mm x 165 mm x 40 mm V = 1.65 liters A = 412.5 cm²
WT water cooler dimensions (side): 252 mm x 188 mm x 68 mm V = 3.2 liters (+94%) A = 473.8 cm² (+14.9%)

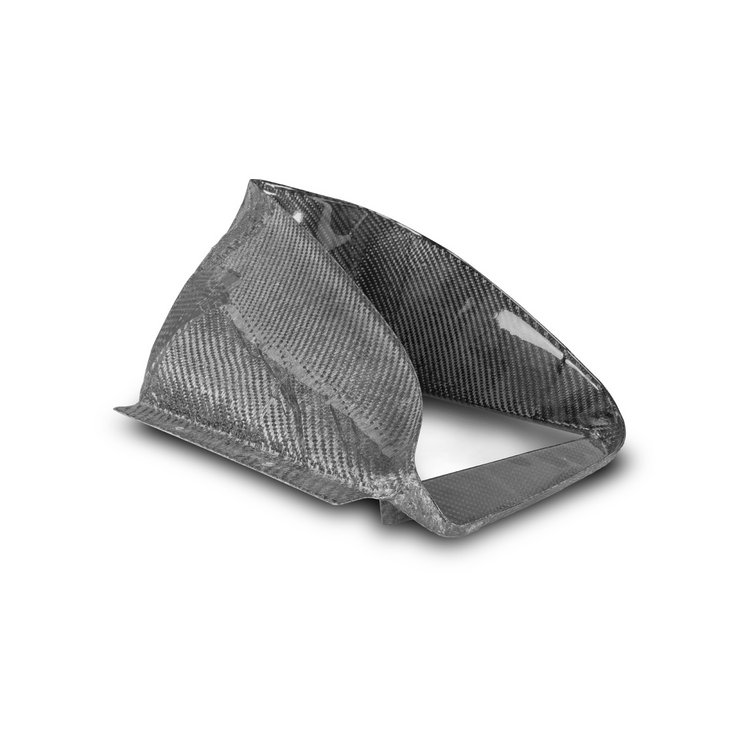

Scope of delivery: 1x side water cooler (low-temperature circuit) 1x carbon air duct for the side water cooler 1x mounting material 1x installation instructions 1x parts certificate
With parts certificate (for easy registration according to §19 paragraph 3 of the StVZO).
The high-quality SOOQOO EVO carbon fibre front spoiler is an excellent addition to significantly enhance the style of your vehicle.
Unlike regular carbon fibre, pre-preg carbon is reinforced to increase strength and durability. It can also be a staggering 70% lighter than other carbon fibre options.Prepreg carbon is far more uniform than other types of carbon, meaning the likelihood of imperfections is drastically reduced. The manufacturing process eliminates unwanted air bubbles and results in a perfectly smooth and high-gloss finish.
Details:- 100% pure prepreg carbon fibre construction- OEM-style weave- High gloss finish- Fit guarantee- with parts certificate according to §19.3
Scope of delivery:- 1x carbon front spoiler
Compatible vehicles:BMW G87 2 Series M2
Note: This is NOT an original BMW product!
The high-quality Edition 1 carbon fibre side skirt is a great addition to significantly increase the style and aggressiveness of your vehicle.
Unlike regular carbon fibre, prepreg carbon is reinforced to increase strength and durability. It can also be a staggering 70% lighter than other carbon fibre options.Prepreg carbon is far more uniform than other types of carbon, meaning the likelihood of imperfections is drastically reduced. The manufacturing process eliminates unwanted air bubbles and results in a perfectly smooth and high-gloss finish.
Details:- 100% pure prepreg carbon fibre construction- OEM-style weave- High gloss finish- Fit guarantee-
with parts certificate according to §19.3
Scope of delivery:- 1x pair of side skirts incl. moutning material
Compatible vehicles:BMW G87 2 Series M2
Note: This is NOT an original BMW product!
The full-length side skirts in glossy carbon fiber are a great way to enhance the side profile of your F87. With their sleek lamella design, they ensure greater road presence and give your vehicle a more aggressive stance.
Unlike regular carbon fibre, pre-preg carbon is reinforced to increase strength and durability. It can also be a staggering 70% lighter than other carbon fibre options.Prepreg carbon is far more uniform than other types of carbon, meaning the likelihood of imperfections is drastically reduced. The manufacturing process eliminates unwanted air bubbles and results in a perfectly smooth and high-gloss finish.
Details:- 100% pure prepreg carbon fibre construction- OEM-style weave- High gloss finish- Fit guarantee- with parts certificate according to §19.3
Scope of delivery:- 1x pair of side skirts made from glossy prepreg carbon fibre
Compatible vehicles:BMW F87 2er M2/Competition/CS N55/S55
Note: This is NOT an original BMW product!
The PSM ducktail made of pre-preg carbon fiber is a rear spoiler that perfectly emphasizes the style of the vehicle. Details:- 100% pure pre-preg carbon fibre construction- OEM style carbon fibre- High gloss finish- Ducktail design- Perfect fit- With parts certificate according to §19.3
Compatible vehicles:- BMW F87 2 Series M2 (2016-2018)
- BMW F87 2 Series M2 Competition (2018-2021)
- BMW F22 2 Series M235i Coupe (2014-2021)
- BMW F22 2 Series M240i Coupe (2014-2021)
- BMW F22 2 Series Coupe (2013-2021)
Note: This is NOT an original BMW product!
The EVO 3 Competition intercooler kit fits the following vehicles with N55 engine:BMW F30 / F31 / F34 335i 225KW/306hp (2012-2015)BMW F32 / F36 435i 225KW/306hp (2013-2016)*Not suitable for xDrive models.
This impressive intercooler sets new standards and was specially developed for the high demands of the large tuning stages.
With mesh dimensions of 510mm x 345mm x 180mm (stepped 23.56L), our intercooler offers a 165% larger flow area and a whopping 223% more charge air volume than the original intercooler. The high-quality competition high-performance mesh with internal turbulators ensures optimum cooling performance. Despite its impressive size, the entire intercooler weighs just 13.8 kg, which underlines its efficiency and lightweight construction.
The cast aluminium end boxes of the intercooler have been optimized using flow analyses in the CFD system to ensure excellent cooling properties with minimal back pressure. Our EVO 3 kit eliminates the original click connections and increases the connection diameters at the inlet to Ø65mm and at the outlet to Ø76mm. In addition, the kit includes reinforced silicone hoses and an aluminum charge air tube in Ø76mm. The result is unsurpassed cooling performance with a significant increase in power. Our intercoolers are all coated with a high-quality anti-corrosion coating, which not only ensures protection against environmental influences, but also has excellent heat conduction properties. This ensures long-lasting and optimum cooling. Our intercooler kit is supplied complete and is ready to install. Replacement with the standard parts is easy thanks to the modified crossbar supplied. Due to the extreme size of the intercooler, minor adjustments to the radiator support may be required.
Our high-performance charge air cooler has been tested under extreme conditions and is pressure-stable up to 6 bar. Each of our products is subject to constant quality monitoring to ensure maximum reliability. This intercooler is the perfect choice for racing and allows your vehicle to set new standards in terms of power and performance.
Advantages of the Wagner Tuning intercooler:- improved cooling performance- 165% larger inflow area- 223% more charge air volume- efficient and lightweight (13.8 kg)- flow-optimized- inlet extended to Ø65mm and outlet extended to Ø76mm- Plug & Play
Dimensions original intercooler:510mm x 130mm x 110mmV=7.3 litersA=663 cm²
Wagner Tuning intercooler dimensions:510mm x 345mm x 180mm [stepped]V=23.56 litersA=1759.5 cm²
Scope of delivery:1 intercooler1 Ø76mm charge air pipe1 external air duct2 silicone hoses1 aluminum adapter1 crossbar1 mounting material1 assembly instructionsAttention: Not approved in the area of the StVZO.
KW V3 coilover suspension incl. decommissioning for ectr. dampers
Unlimited individuality for performance & comfort. Separate damper force adjustment for rebound and compression damping.As with every KW coilover suspension, our suspension engineers also develop a sporty and harmonious basic set-up for the vehicle-specific applications of the KW V3. In addition to tests on our KW 7-post driving dynamics test bench, we also carry out extensive test drives on country roads, the motorway and even on the Nürburgring Nordschleife, kilometre by kilometre, to guarantee you the perfect suspension set-up. For years, the KW V3, one of the world's top aftermarket products, has been the reference for coilover suspensions. With its damper characteristics, high-quality workmanship and outstanding durability, it has impressed discerning sports car drivers, tuners, large and small series manufacturers such as Alpina, MTM, Manthey, Oettinger and many other well-known companies in the international automotive industry.
Cutting-edge technology from motorsportYou get much more than a sporty lowering and excellent handling on all roads with the KW V3. It is based on our many years of experience as a suspension manufacturer and supplier in international motorsport, such as in the ADAC GT Masters touring car series, FIA GT1, FIA GT3, International GT Open, WTC, VLN and also in the legendary ADAC Zurich 24h Race Nürburgring.Similar to our racing coilovers from the KW Competition programme, the rebound and compression damping of the KW V3 can be adjusted independently of each other. This individual tuning option is appreciated by tuners, sports car manufacturers, tuners and demanding drivers worldwide.
The perfect suspension setup for significantly more driving dynamicsIf you have already carried out initial performance modifications to your sporty road vehicle, it is easy to incorporate these into the damper set-up in a targeted manner with the KW V3. The patented KW valve technology for the separate adjustment of the rebound and compression damping allows you to customise the vehicle-specific basic set-up from KW. For example, the KW bottom valve, which can be adjusted in twelve clicks in the low-speed range of the compression damping, gives you the freedom to even take the tyre characteristics of your high and ultra-high performance road tyres into account in the suspension set-up.Thanks to the patented compression adjustment at the lower piston end of the stainless steel housing, you don't even need any tools. The adjustable compression adjustment with its twelve precise clicks allows you to influence body roll and body roll movements by hand without having to change the rebound damping to match the spring rate.With the individually adjustable rebound damping of the KW V3, you can directly influence the handling and comfort through the exact click adjustment. Depending on the vehicle type, the rebound valves of the KW twin-tube dampers are adjusted at the upper end of the piston rod via an integrated adjustment wheel or the slip-on adjustment wheel included in the scope of delivery.By increasing the rebound force via the adjustment wheel, the body movements on the body are reduced. As a result, your car tracks more accurately and you have even more stability at higher cornering speeds. If, for example, you change from the approved wheel/tyre combinations of your car manufacturer to larger rims, you can use the KW V3 to perfectly match the handling of your car and your new alloy wheels.
High-quality, customised and durableThe KW V3 is subjected to extensive quality tests during production and every single damper is checked. This is the only way we can fulfil our claim to provide a warranty of up to five years when a KW coilover suspension V3 is installed by a KW specialist dealer. Due to the filigree workmanship and the use of high-quality components, the KW coilover struts made of stainless steel, for example, are 100 per cent rust-free and have an unlimited service life.This means that the functionality of the stepless lowering system via the dirt-resistant KW trapezoidal thread and the KW polyamide threaded ring is not impaired even after many years. Thanks to the individual lowering with its stepless adjustment range, you can also emphasise the sportiness of your vehicle visually. A feature that is very popular in the performance-orientated tuning scene.
- Freely adjustable damping technology in rebound and compression damping- inox-line stainless steel technology- Individual, stepless lowering- Tested adjustment range- high-quality components for a long service life- adjustable rebound damping with 16 exact clicks- 12-way adjustable compression damping with click adjustment- Unique, independently acting damping force adjustment
Setup: The individually adjustable rebound & compression damping of the KW V3The KW V3 is the ideal accessory for performance-orientated drivers and tuning enthusiasts who demand a high level of sportiness from their vehicles. The dampers, which are separately adjustable in rebound and compression, allow extensive damper tuning with their sophisticated click adjustment. This makes it easy to directly influence the turn-in behaviour, directional stability, tyre grip and handling characteristics for safe controllability at the limit.
Please note the conditions and instructions for this product:- A + HA height-adjustable (VA coilover struts, HA springs with height adjustment + damper)- The dampers have easy-to-operate adjustment wheels. Due to the design, the rebound stage can only be adjusted when the piston rod is accessible.- Electronic damper control must be deactivated. Electronic kit for deactivation is included in the scope of delivery.
Technical information:Lowering VA/HA (mm): 20-35/15-30Version: V3Height adjustment: Rebound and compression dampingMaterial: Stainless steelAdjustment VA/HA: thread/threadApproval: Parts certificate (§19.3)
Compatible vehicles:BMW 3 Series (G20, G80) G3L 11/2018- M3 COMPETITION M XDRIVE notchback petrol 375 KW 2993 ccm 6 all-wheel driveBMW 3 Series (G20, G80) G3L 11/2018- M3 CS xDrive notchback petrol 405 KW 2993 ccm 6 all-wheel driveBMW 4 Series Coupe (G22, G82) 07/2020- M4 Competition M xDrive Coupe petrol 375 KW 2993 ccm 6 all-wheel drive
