Water cooler kit | fits BMW 1/2/3/4 series (F-series) B48 B58 | Wagner Tuning

AED 5,375.00*

Delivery time: approx. 3-7 working days*

place a request
Product number: WT400001002
Product information "Water cooler kit | fits BMW 1/2/3/4 series (F-series) B48 B58 | Wagner Tuning"

Plug and Play suitable for the following models with the B48 & B58.1 engine:
BMW 1 Series F20/F21 LCI from 09/2015 - 120i, 125i, M140(x)i
BMW 2 Series F22/F23 LCI from 09/2016 - 220i, 230i, M240i
BMW 3 Series F30/F31/F34/F35 LCI from 09/2014 - 320i, 330i, 340i
BMW 4 Series F32/F33/F36 LCI from 03/2016 - 420i, 430i, 440i

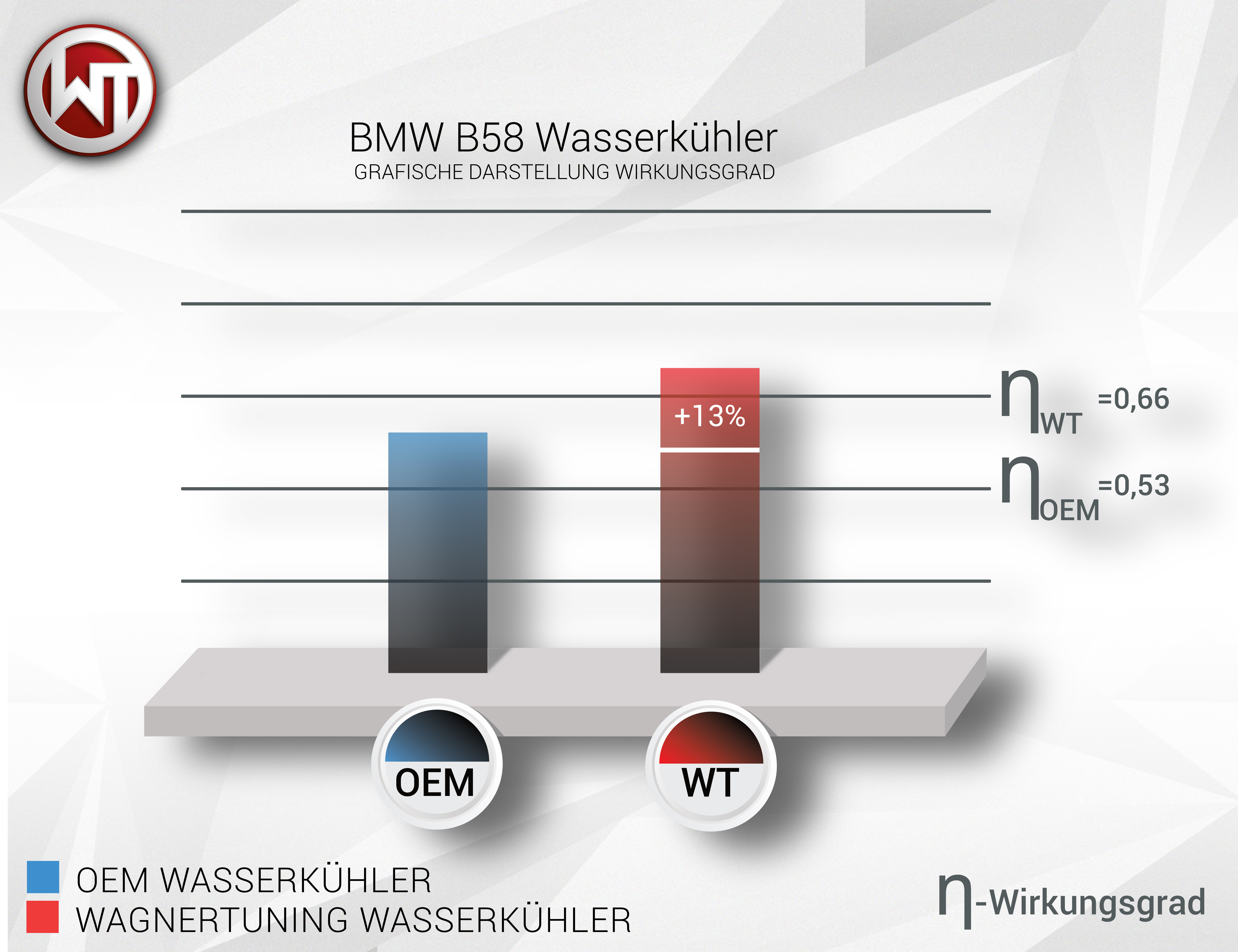

The 2.0 liter B48B20 and 3.0 liter B58B30M0 turbo engine of the specified models is equipped with an indirect charge air cooling circuit. This means that the charge air is not cooled using the ambient air as a cooling medium (as usual), but by means of a separate cooling water circuit. A reduction in the cooling water temperature can therefore be directly equated with an improved cooling performance of the charge air. This is precisely where the advantages of the WAGNERTUNING upgrade water cooler come into play. The newly developed competition racing mesh of the WAGNERTUNING high-performance water cooler increases the radiator volume of the standard water cooler by 117%. The ratio between the inner and outer cooling surface generates maximum heat transfer and at the same time allows the adjacent components (e.g. the engine water cooler located behind it) sufficient air flow for heat exchange. Furthermore, the increased cooling water volume allows the entire system thermal to be kept at a lower level over a longer period of time.

All WAGNER TUNING water coolers are equipped with a thermally conductive anti-corrosion coating to ensure a long-lasting cooling effect. Installation of the system is also uncomplicated and plug & play with the help of our installation instructions.

OEM water cooler dimensions:
576 mm x 495 mm x 27 mm
V = 7.70 liters
A = 2851 cm²

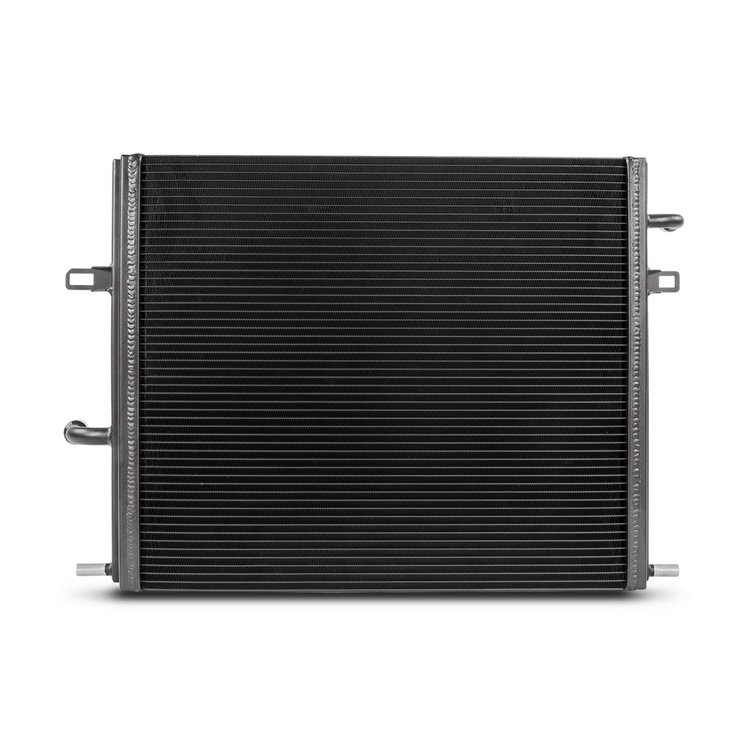

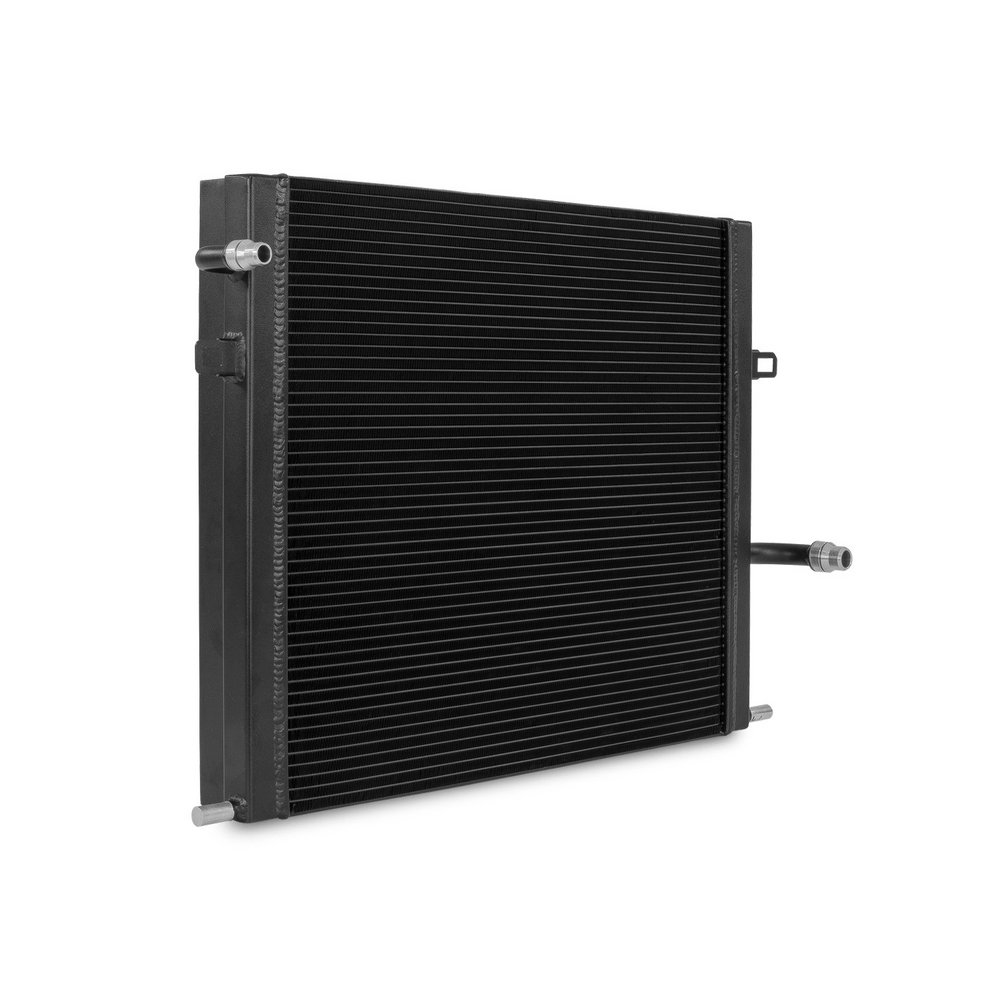

WT water cooler dimensions:
524 mm x 468 mm x 68 mm
V = 16.70 liters
A = 2454 cm²

Attention: Not approved in the area of the StVZO.
