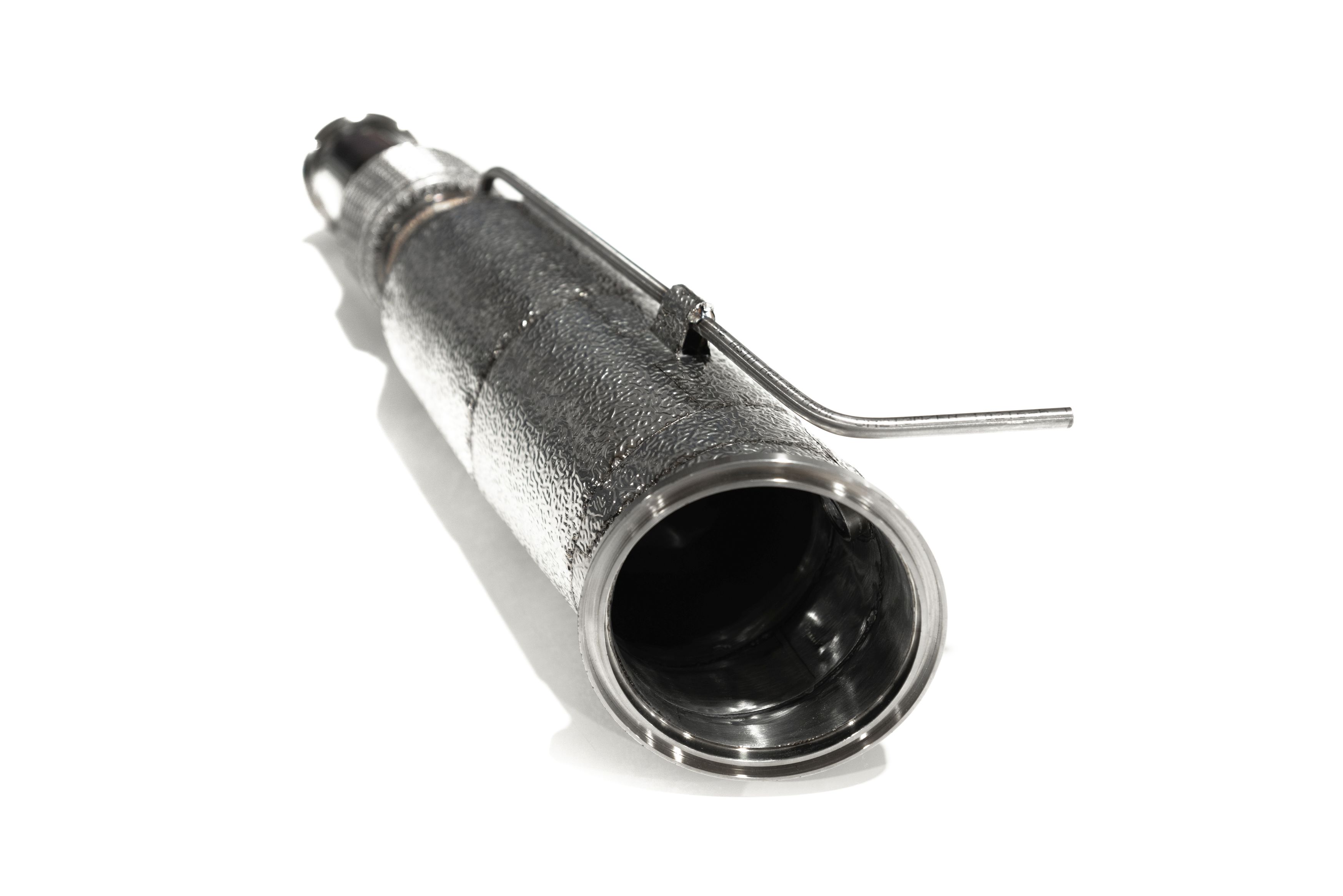

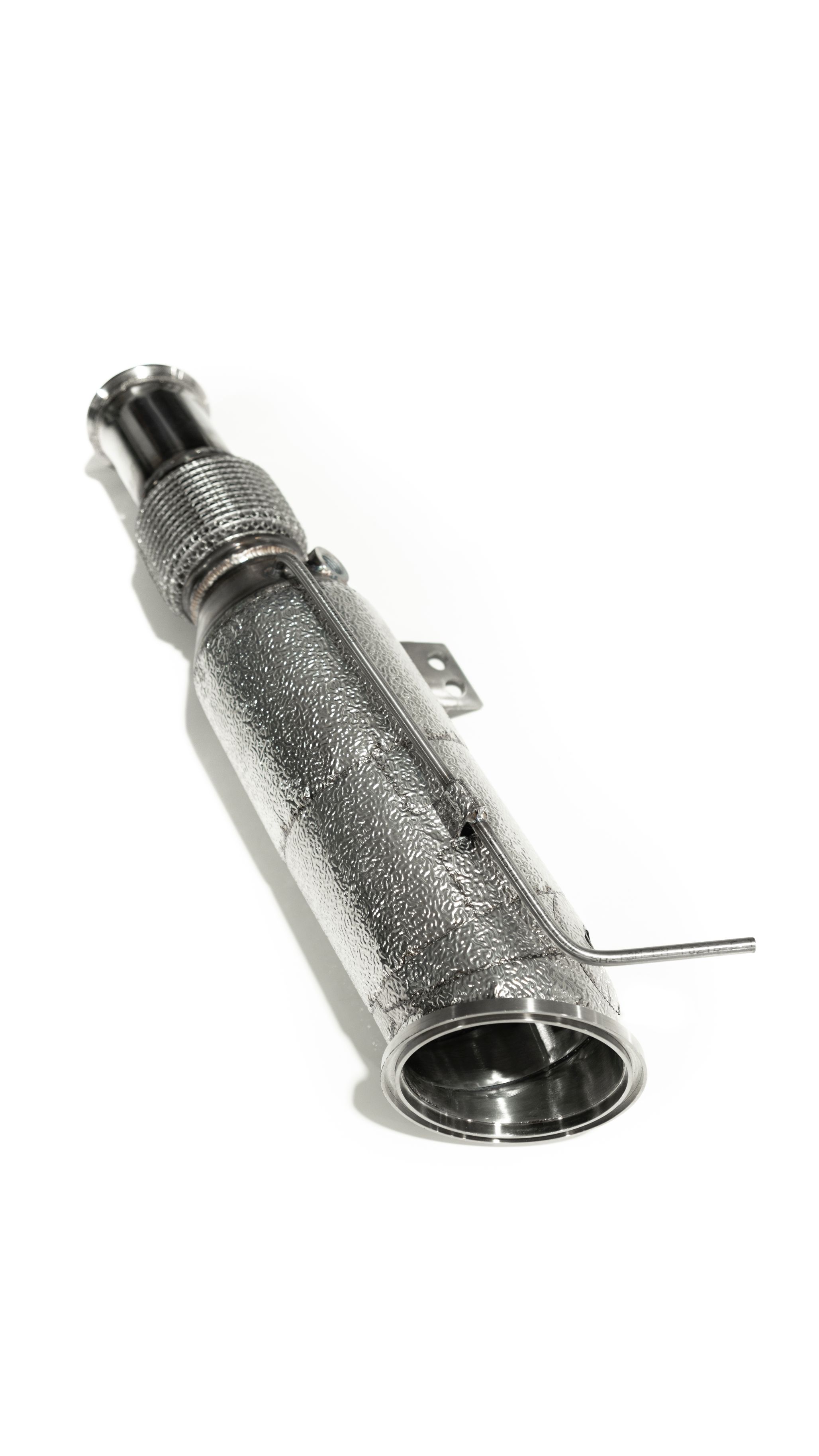

Product information "Aulitzky Exhaust | ECE downpipe with sports catalyst | fits BMW 840i OPF (G14/G15/G16)"
Facts:
- 4.49“ (114mm) > 3” (76mm), replaces the main catalyst
- with 200 cell stainless steel sports catalyst
- Euro 6 compatible
- for OPF models
- with Thermo-Integral insulation (at extra cost)
- with ECE approval*
Compatible vehicles:
Vehicle
Vehicle type
Power
Engine capacity
Engine type
Year of construction
BMW 8 Series (G14/G15/G16)
840i / xDrive
245kW / 333hp
2998cm³
B58 B30 C
11.20 -
BMW 8 Series (G14/G15/G16)
840i / xDrive
250kW / 340hp
2998cm³
B58 B30 C
07.19 -
Note: Depending on the software version, the engine control light may light up. We recommend the purchase of an OFF set module or software customisation.
*This downpipe has ECE approval so that it can be used within the scope of the German Road Traffic Licensing Regulations (StVZO) without registration in the vehicle documents.
MOVIT DDE steel brake system 370x35mm (6 piston calliper) for the front axle, from 18 inch rims upwardsApplication-focussed development is the cornerstone of this high-performance brake system. The required balance of weight, performance and durability is optimally combined.
The uncompromising selection of materials in production results in a highly unique product that meets the diverse requirements of extreme automotive applications.
The most important features of the MOVIT brake system are- The progressive staggering of the piston diameters, matched to the vehicle, so that precisely parallel contact pressure between the pad and the disc is guaranteed. This enables even wear of the brake pads and ensures even heat transfer and a reduced system temperature.- Very good heat dissipation due to the open design of the brake pad contour.- Calipers manufactured from high-strength, highly tempered aircraft aluminium 7075 with high-quality material properties (stiffer components, more homogeneous structure), hard anodised and coated with a triple paint finish.- Optimised stability due to the length of the callipers- Larger brake disc diameter and thickness, more cross holes (each pre-cast hole is re-drilled and countersunk, which has a favourable effect on the flow).- The brake discs are thermally tempered.- The optimised DDE ventilation system (double directional evolvent system) of the brake disc has an 80% larger surface area compared to other brake discs, the temperature of the brake disc is significantly reduced and therefore also the wear.- Long service life of the wearing parts, excellent response behaviour, steel flex lines ensure consistent performance.- Optimally matched brake pads ensure fading resistance, a long service life and reduced wear on spare parts
Attention: The conversion means that only rims with at least 18 inches can be fitted!
The chassis number of the vehicle on which the brakes are fitted is required for the parts certificate.
MOVIT sports brake callipers, 6s5, 6-piston- Milled from high-strength aircraft aluminium 7075- Two-piece- Use of maximum disc size due to long design- Significantly improved rigidity and extended contact surface of the pad- Uniform heat transfer- Reduced system temperature- Low, even pad wear- Progressive piston staggering- Crown system for fixing the brake hose- RAPAD-X system for quick brake pad replacement without removing the caliper from the bracket- Open brake pad track for optimised cooling- Maximum stability- Maximum braking force
MOVIT sports brake discs, 370x35mm, 2-piece- Highly efficient DDE cooling system- Perforated for optimum response behaviour even on wet roads- Maximum fading resistance- Special alloy for high thermal conductivity
MOVIT comfort brake pads, BE-6s1- Enlarged friction surface- Lower system temperature- Uniform heat transfer- Longer service life
Scope of delivery:2x MOVIT brake caliper (left/right)2x MOVIT brake disc (left/right)2x vehicle-specific brake caliper adapter1x set of comfort brake pads2x steel flex lines1x assembly material1x installation instructions and running-in instructions1x parts certificate
Compatible vehicles:BMW 1 Series F20 / F21 (also M)Ford Focus RS CB4 / MKIIAudi RS3 8PAudi RS4 B5Audi S4 Type 8D / B5BMW M3 E46BMW M3 E46 CSLBMW M3 E92Ford Mustang V Shelby GT 500Mercedes Benz W639 Vito / VianoVolvo XC90 1st gen. from 2011 onwardsVW Golf VII GTI / GTD 57 series pistonsVW Golf VII GTI / GTD 57 series pistonsVW GOLF VII GTI Clubsport / Performance 60 series pistonsVW Golf VII RVW Golf VII RVW T5 / T6 Multivan
Facts:Performance increase: 15-20hpExpert opinion: withoutManufacturer: EventuriMaterial: CarbonExpert opinion: without
The Mercedes A35 AMG Eventuri intake system was developed to provide the turbo with a less restrictive flow path while keeping intake temperatures low. Reducing heat suction and increasing internal volume are the main considerations when developing an intake system for turbocharged engines. In the A35, the intake system is located in close proximity to the exhaust manifold, which quickly heats up the engine compartment. High temperatures have a detrimental effect on engine performance, as the turbo has to build up boost pressure with heated, less dense air. Therefore, the only way to reduce IAT to a minimum is to have a completely sealed intake tract. To reduce the restrictions of a closed intake tract, we increased the volume of the airbox by relocating the ECU and providing an opening in the airbox on the cold side, away from the direct heat of the manifold. The carbon inlet pipe has a larger internal volume with an initial internal diameter of 111mm (4.4?) which tapers smoothly to match the turbo inlet pipe diameter. Finally, we use a custom high-flow dry filter that is ISO approved and has a larger filter area than the stock filter.
Dyno testsThe dyno tests were carried out by MSL Performance, a Mercedes specialist based in the UK. A fully standard A35 AMG was tested with the standard airbox and then with the Eventuri intake system, with the same external conditions. As can be seen below, the intake system offers an increase in power throughout the rev range. The highlighted point shows a significant power gain as the intake allows a higher flow rate in the higher rev range where the stock airbox becomes a restriction. The resulting performance gains are noticeable on the road, with better throttle response and improved acceleration times. With a tuned A35 we would expect even better gains as the demand from the turbo increases.
The Eventuri A35 intake system consists of a number of components designed for a specific purpose and manufactured to the highest standards. We use 100% pre-impregnated carbon fiber without fiberglass, which means we can achieve a smooth inner surface to get a smoother airflow. Here are the details for each component and the design ethos behind them:
Each intake system consists of:Carbon airboxCustom high-flow dry-cone filterCarbon intake tubeCNC-machined intake flangeLaser-cut stainless steel brackets and ECU coverSilicone coupler with OEM clamps
Compatible vehicles:VehicleVehicle typePowerEngine capacityEngine typeYear of construction Mercedes A-Klasse (W177/V177)A250 / 4-matic165kW / 224hp1991cm³M 260.92003.18 -
Mercedes A-Klasse (W177/V177)A35 AMG 4-matic225kW / 306hp1991cm³M 260.92009.18 -
Mercedes CLA (C118/X118)A250 / 4-matic165kW / 224hp1991cm³M 260.92003.19 -
Mercedes CLA (C118/X118)CLA35 AMG 4-matic225kW / 306hp1991cm³M 260.92004.19 -
Mercedes GLB (X247)GLB250 / 4-matic165kW / 224hp1991cm³M 260.92008.19 -
Mercedes GLB (X247)GLB35 AMG 4-matic225kW / 306hp1991cm³M 260.92008.19 -
Facts:Material: CarbonManufacturer: EventuriParts certificate: A certificate is available for this product for certain regions and vehicles (details below)
Introducing our E9X carbon fiber air collector.
Made from 100% high quality prepreg carbon including the inner trumpets, this air collector replaces the stock plastic version and unleashes the roar of the naturally aspirated V8 engine.As the trumpet lengths are tuned to the inner volume, changing this setting can result in a loss of power, so we have kept the same volume so as not to affect the way the car drives in terms of power delivery. Although there is no performance gain from the carbon plenum, the intake noise produced takes the driving experience to a whole new level. We went through several iterations with different material thicknesses to fine tune the sound, and the resulting plenum produces an almost unbelievable intake sound!
This plenum can be used with the OEM airbox or any other aftermarket intake system, including our own Eventuri intake systems for a real performance boost.
Parts certificateThe manufacturer's specifications apply to installation. An existing certificate is no guarantee that the product can also be installed in the corresponding vehicle.
A certificate is available for this product for the following regions and vehicles:* DE/AT: Vehicle registration document, field K --- CH/LI: Vehicle registration document, field 24Country model type approval*DE/AT BMW E90 M3 e1*2007/46*0377*..DE/AT BMW E92 M3 e1*2007/46*0377*..DE/AT BMW E93 M3 e1*2007/46*0377*..DE/AT BMW GTS e1*KS07/46*0012*..DE/AT BMW M3 e1*2001/116*0345*..
Compatible vehicles:VehicleVehicle typePowerEngine capacityEngine typeYear of construction BMW 3er (E90/E92/E93)M3309kW / 420hp3999cm³S65 B40 A06.07 - 06.13
KW coilover springs
The spring set with stepless lowering
KW coilover springs are used to lower the vehicle in combination with the standard dampers. In contrast to conventional spring sets, individual height adjustment is possible within the tested adjustment range. This solution uses vehicle-specific spring mounts with matched KW lowering springs and suitable elastomers as well as dust protection systems. The standard damper system, for example with electronic or hydraulic control, remains active.
Setup - sporty and harmonious spring rates
The high-quality chrome-silicon steel springs used by KW coilover springs are matched to the respective standard suspension dampers and wheel loads in their spring rate for each specific vehicle. When developing the respective spring sets, we ensure that the spring rates also harmonise perfectly with the different damper characteristics of your adaptive standard suspension. So even with a KW coilover spring set, you will experience your car more directly and dynamically. KW coilover springs are suitable for car drivers who want to lower their vehicle discreetly and take advantage of an individual adjustment range.
Stepless lowering
Similar to a coilover suspension, the KW coilover springs allow a stepless lowering in a discreet range. This is not possible with conventional lowering springs. The dust protection elements and spring travel limiters included in the scope of delivery are always adapted to the maximum possible lowering. This means that the height-adjustable KW springs can be used to achieve a sporty, harmonious driving behaviour without compromising the driving dynamics of performance-oriented vehicles.
Please note the conditions and instructions for this product:
- VA + HA height-adjustable (spring set consisting of VA+HA springs with height adjustment, can only be used with standard dampers)
Technical information:
Lowering VA/HA (mm): 5-20/0-20
Adjustment VA/HA: Thread/thread
Approval: Parts certificate (§19.3)
Scope of delivery: Set (VA+HA)
Compatible vehicles:
Manufacturer Model Version Body Fuel Performance Displacement Cylinder Drive
MERCEDES-BENZ A-KLASSE (W177) F2A 03/2018- AMG A 35 4-matic (177. 051) Hatchback Petrol 225 KW 1991 ccm 4 All-wheel drive
MERCEDES-BENZ A-KLASSE (W177) F2A 03/2018- AMG A 45 4-matic+ (177.053) Hatchback Petrol 285 KW 1991 ccm 4 All-wheel drive
MERCEDES-BENZ A-KLASSE (W177) F2A 03/2018- AMG A 45 S 4-matic+ (177. 054) Hatchback Petrol 310 KW 1991 ccm 4 All-wheel
MERCEDES-BENZ CLA Shooting Brake (X118) F2CLA 06/2019- AMG CLA 35 4-matic (118.651) Estate Petrol 225 KW 1991 ccm 4 All-wheel
MERCEDES-BENZ CLA Shooting Brake (X118) F2CLA 06/2019- AMG CLA 45 4-matic+ (118. 653) Estate Petrol 285 KW 1991 ccm 4 All-wheel drive
MERCEDES-BENZ CLA Shooting Brake (X118) F2CLA 06/2019- AMG CLA 45 S 4-matic+ (118.654) Estate Petrol 310 KW 1991 ccm 4 All-wheel drive
KW V3 coilover suspension
Unlimited individuality for performance & comfort. Separate damper force adjustment for rebound and compression damping.As with every KW coilover suspension, our suspension engineers also develop a sporty and harmonious basic set-up for the vehicle-specific applications of the KW V3. In addition to tests on our KW 7-post driving dynamics test bench, we also carry out extensive test drives on country roads, the motorway and even on the Nürburgring Nordschleife, kilometre by kilometre, to guarantee you the perfect suspension set-up. For years, the KW V3, one of the world's top aftermarket products, has been the reference for coilover suspensions. With its damper characteristics, high-quality workmanship and excellent durability, it has impressed discerning sports car drivers, tuners, large and small series manufacturers such as Alpina, MTM, Manthey, Oettinger and many other well-known companies in the international automotive industry.
Cutting-edge technology from motorsportYou get much more than a sporty lowering and excellent handling on all roads with the KW V3. It is based on our many years of experience as a suspension manufacturer and supplier in international motorsport, such as in the ADAC GT Masters touring car series, FIA GT1, FIA GT3, International GT Open, WTC, VLN and also in the legendary ADAC Zurich 24h Race Nürburgring.Similar to our racing coilovers from the KW Competition programme, the rebound and compression damping of the KW V3 can be adjusted independently of each other. This individual tuning option is appreciated by tuners, sports car manufacturers, tuners and demanding drivers worldwide.
The perfect suspension setup for significantly more driving dynamicsIf you have already carried out initial performance modifications to your sporty road vehicle, it is easy to incorporate these into the damper set-up in a targeted manner with the KW V3. The patented KW valve technology for the separate adjustment of the rebound and compression damping allows you to customise the vehicle-specific basic set-up from KW. For example, the KW bottom valve, which can be adjusted in twelve clicks in the low-speed range of the compression stage, gives you the freedom to even take the tyre characteristics of your high and ultra-high performance road tyres into account in the suspension set-up.Thanks to the patented compression adjustment at the lower piston end of the stainless steel housing, you don't even need any tools. The adjustable compression adjustment with its twelve precise clicks allows you to influence body roll and body roll movements by hand without having to change the rebound damping to match the spring rate.With the individually adjustable rebound damping of the KW V3, you can directly influence the handling and comfort through the exact click adjustment. Depending on the vehicle type, the rebound valves of the KW twin-tube dampers are adjusted at the upper end of the piston rod via an integrated adjustment wheel or the slip-on adjustment wheel included in the scope of delivery.By increasing the rebound force via the adjustment wheel, the body movements on the body are reduced. As a result, your car tracks more accurately and you have even more stability at higher cornering speeds. If, for example, you change from the approved wheel/tyre combinations of your car manufacturer to larger rims, you can use the KW V3 to perfectly match the handling of your car and your new alloy wheels.
High-quality, customised and durableThe KW V3 is subjected to extensive quality tests during production and every single damper is checked. This is the only way we can fulfil our claim to provide a warranty of up to five years when a KW coilover suspension V3 is installed by a KW specialist dealer. Due to the filigree workmanship and the use of high-quality components, the KW coilover struts made of stainless steel, for example, are 100 per cent rust-free and have an unlimited service life.This means that the functionality of the stepless lowering system via the dirt-resistant KW trapezoidal thread and the KW polyamide threaded ring is not impaired even after many years. Thanks to the individual lowering with its stepless adjustment range, you can also emphasise the sportiness of your vehicle visually. A feature that is very popular in the performance-orientated tuning scene.
- Freely adjustable damping technology in rebound and compression damping- inox-line stainless steel technology- Individual, stepless lowering- Tested adjustment range- high-quality components for a long service life- adjustable rebound damping with 16 exact clicks- 12-way adjustable compression damping with click adjustment- Unique, independently acting damping force adjustment
Setup: The individually adjustable rebound & compression damping of the KW V3The KW V3 is the ideal accessory for performance-orientated drivers and tuning enthusiasts who demand a high level of sportiness from their vehicles. The dampers, which are separately adjustable in rebound and compression, allow extensive damper tuning with their sophisticated click adjustment. This makes it easy to directly influence the turn-in behaviour, directional stability, tyre grip and handling characteristics for safe controllability at the limit.
Please note the conditions and instructions for this product:
- VA + HA height-adjustable (VA coilover struts, HA springs with height adjustment + dampers)
- Dampers have easy-to-use adjustment wheels. Due to the design, the rebound stage can only be adjusted when the piston rod is accessible.
Technical information:
Lowering VA/HA (mm): 5-30/10-35
Design: V3
Hardness adjustment: Rebound and compression
Material: Stainless steel
Adjustment VA/HA: Thread/thread
Approval: Parts certificate (§19.3)
Compatible vehicles:
Manufacturer Model Version Body Fuel Performance Displacement Cylinder Drive
FORD FIESTA VI (JA8_, CB1, CCN) 06/2008- 1.6 ST Hatchback Petrol 134 KW 1596 ccm 4 Front-wheel drive
FORD FIESTA VI (JA8_, CB1, CCN) 06/2008- 1.6 ST200 Hatchback Petrol 147 KW 1596 ccm 4 Front-wheel drive
AED 8,483.99*
