Competition intercooler kit EVO 3 / EVO 3.X | fits Audi TTRS (8J) 2.5 TFSI | Wagner Tuning

The Wagner Tuning Competition intercooler kit EVO 2 is suitable for:
Audi TTRS 8J 250KW/340hp (2009-2014)
Audi TTRS plus 8J 265KW/360hp(2009-2014)

The Competition intercooler kit EVO 3 (not EVO 3.X!) for Audi TTRS 8J is now available with parts certificate and in two different mesh variants!

Important: We recommend using the standard version for power classes up to 600 hp and the X version for power classes from 600 hp.
The new EVO 3.X mesh version was developed in cooperation with a renowned Audi tuner and is suitable for higher power increases from 600 hp. The size of the intercooler remains unchanged from the standard version. Only the inner mesh structure has been further optimized for the high performance classes and adapted to the conditions. The EVO 3.X therefore ensures optimum charge air flow with very good cooling performance. For all power classes below 600 hp, we still recommend using the standard version.

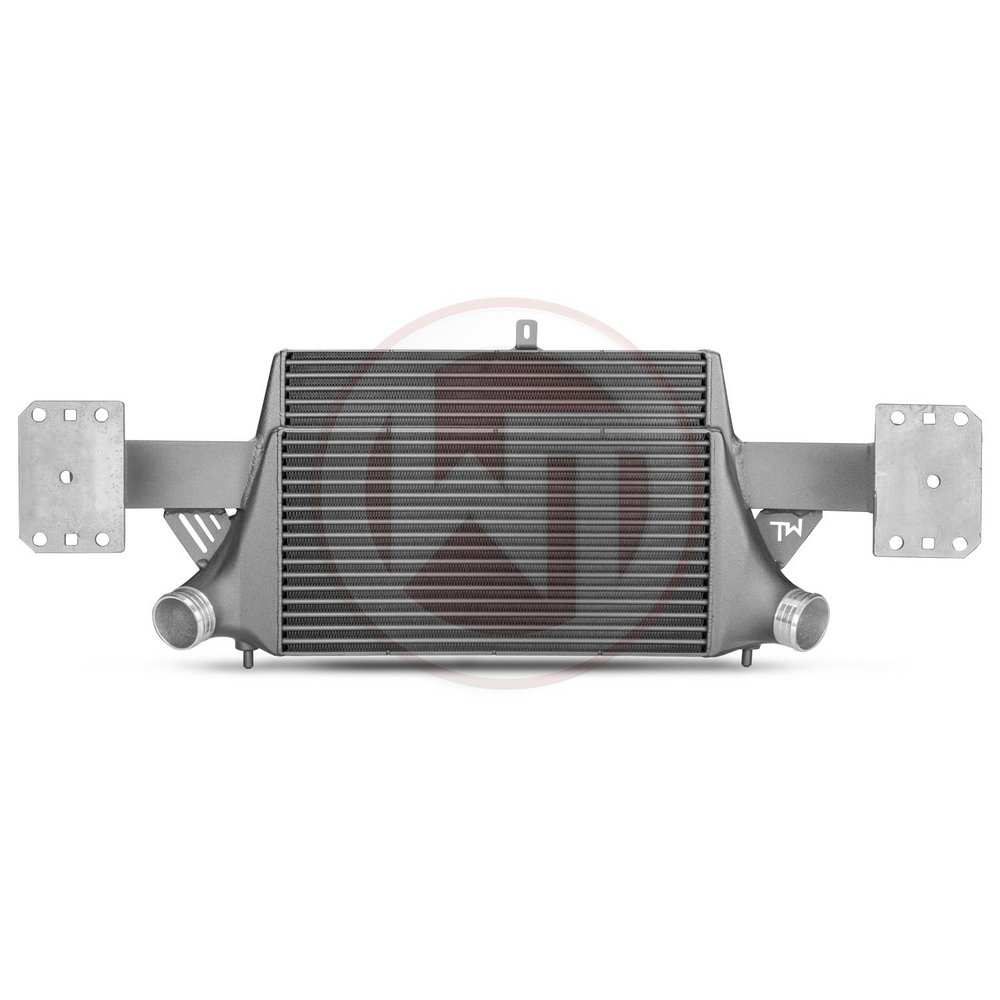

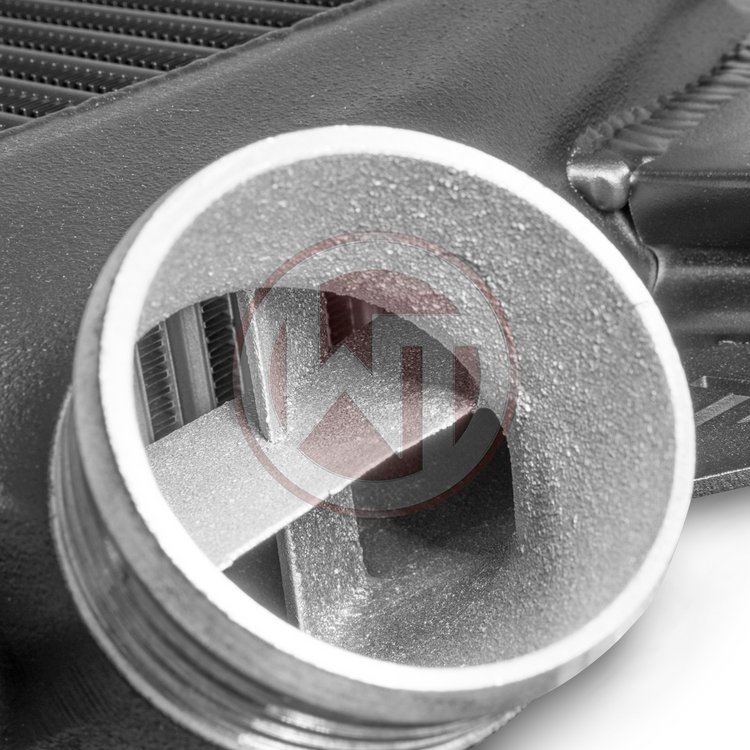

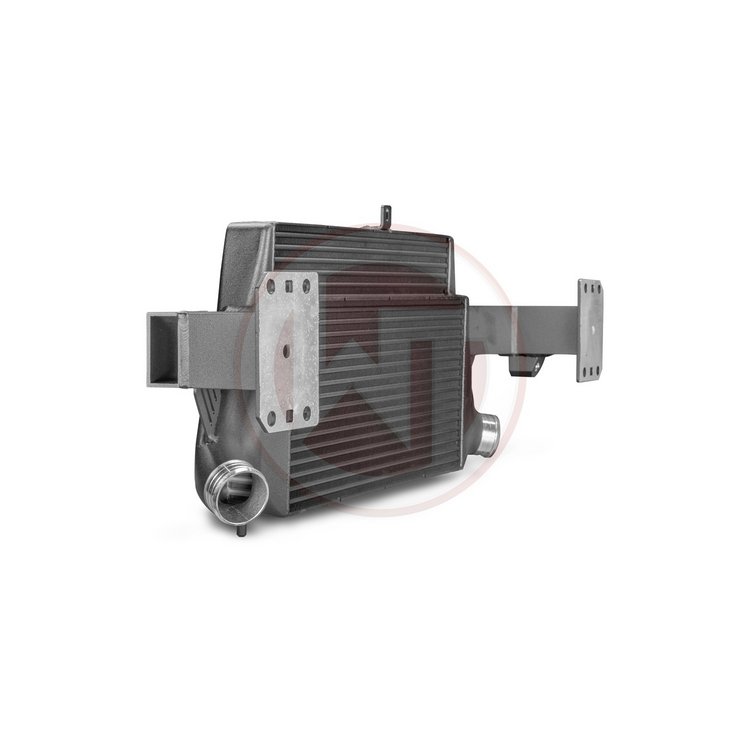

The high-performance intercooler has the following net dimensions (515mm x 367[274]mm x 95mm) and thus offers a 120% larger airflow area and 142% more charge air volume compared to the original intercooler. The newly developed competition high-performance mesh ensures sufficient airflow to the adjacent components, such as the water cooler, and is also very light. The end boxes of the intercooler are made of cast aluminium and have been optimized using flow analyses in the CAD system. Integrated air baffles at the inlet ensure that the charge air cooler is filled evenly. The result is excellent cooling properties with minimal back pressure. This kit is therefore just right for racing. The intercooler and the original crossbar form a stable unit and weigh only 11.2 kg thanks to the new competition high-performance mesh. It is fitted to the original mounting points and is easy to install (1:1 replacement). Optimum cooling of the supercharged air with a significant increase in performance! The connection diameter is 68mm on both sides.

Advantages of the Wagner Tuning intercooler:
- improved cooling performance
- 120% larger inflow area
- 142% more charge air volume
- flow-optimized
- less back pressure
- Connection diameter 68mm on both sides
- Plug & Play

OEM intercooler: cooling surface 856cm² / charge air volume 6.8L
WT EVO 1 Performance: cooling surface 856cm² / charge air volume 9.4L
WT EVO 2 Competition: Cooling surface 1391cm² / charge air volume 13.2L
WT EVO 3 Competition: Cooling surface 1890cm² / charge air volume 16.5L

All our products are subject to constant quality control.

Scope of delivery:
1 intercooler together with the crossbar
1 mounting material
1 set of license plate holders
1 set of installation instructions

EVO 3: With parts certificate (for easy registration according to §19 paragraph 3 of the StVZO).
EVO 3.X: Attention: Not approved in the area of the StVZO.
