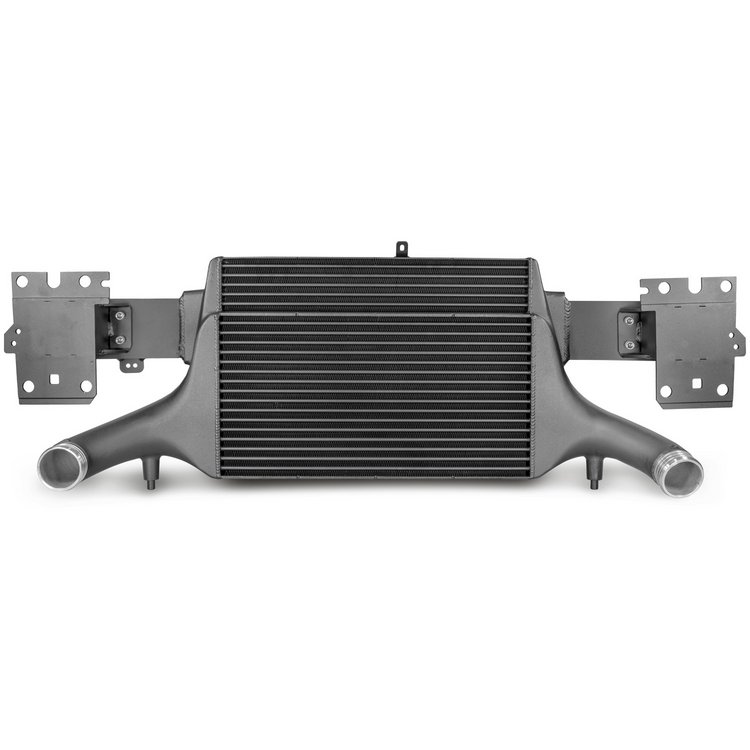

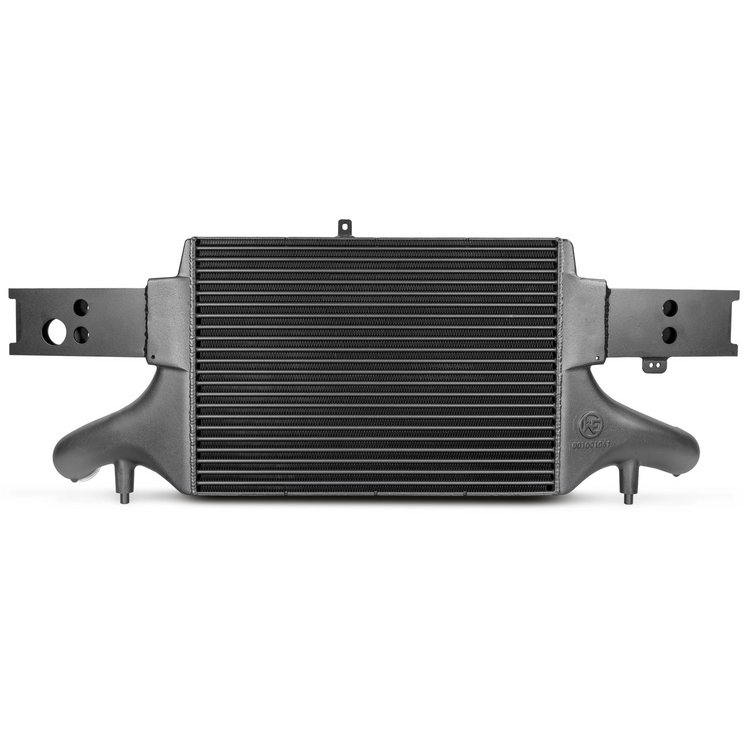

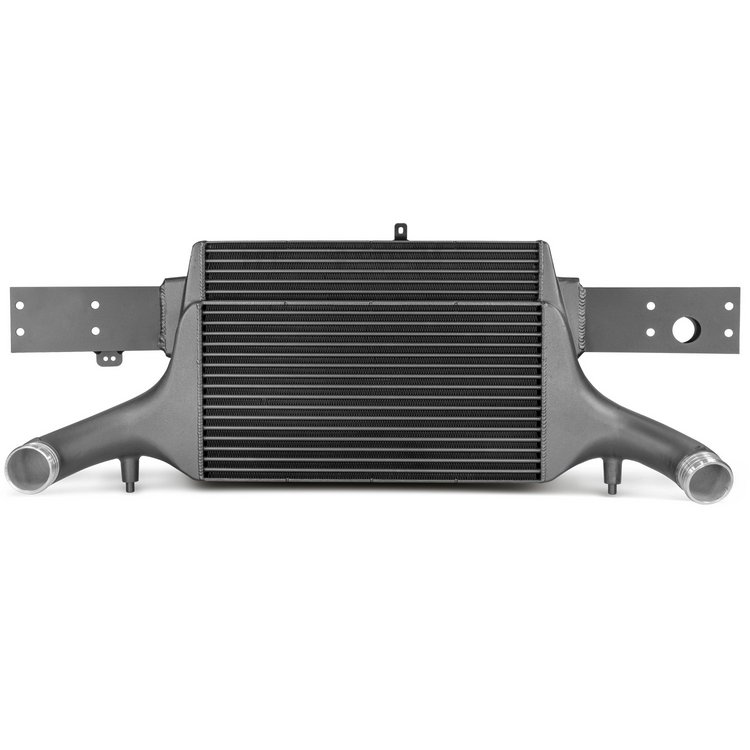

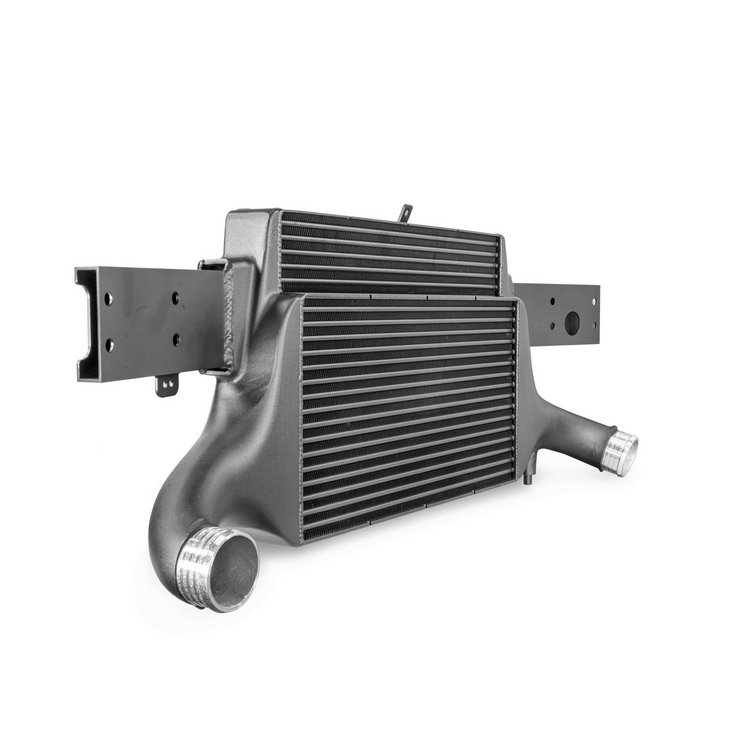

Competition intercooler kit EVO 3 / EVO 3.X | fits Audi RS3 (8V) 2.5 TFSI | Wagner Tuning

Suitable for the following vehicles:
Audi RS3 8V Sportback 270KW/367hp 04/2015-04/2016
Audi RS3 8V Sportback/Sedan 294KW/400hp 08/2017- (OPF models not included in TGA)

The Competition intercooler kit EVO 3/3.X for the Audi RS3 8V is now available with parts certificate (nonOPF models only) and in two different mesh variants!

Important:
We recommend using the standard EVO 3 version for power classes up to 600hp and the EVO 3.X version for power classes from 600hp.

The new EVO 3.X mesh version was developed in cooperation with a renowned Audi tuner and is suitable for higher power increases from 600 hp. The size of the intercooler remains unchanged from the standard EVO 3 version. Only the inner mesh structure has been further optimized for the high performance classes and adapted to the conditions. As a result, the EVO 3.X ensures optimum charge air flow with very good cooling performance.
For all power classes below 600 hp, we still recommend using the standard EVO 3 version.

The high-performance intercooler has the following net dimensions (515mm x 367mm x 95mm [stepped] = 16.5L) and thus offers an 84% larger flow area and 101% more charge air volume compared to the original intercooler. The newly developed competition high-performance mesh ensures sufficient airflow to the adjacent components, such as the water cooler. It is a high-quality Tube Fin mesh with internal turbulators. The end boxes of the intercooler are made of cast aluminium and have been optimized using flow analyses in the CFD system. Integrated air baffles at the inlet ensure that the charge air cooler is filled evenly. The result is excellent cooling properties with minimal back pressure. This kit is therefore ideal for racing. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimum cooling with a significant increase in performance. The intercooler and the crossbar form a stable unit and, thanks to the new Competition high-performance mesh, weighs just 14.3 kg. It is fitted to the original mounting points and is easy to install (1:1 replacement). Tested up to 6 bar and pressure-resistant. All our products are subject to constant quality control.

Advantages of the Wagner Tuning intercooler:
- improved cooling performance
- 84% larger inflow area
- 101% more charge air volume
- Inlet and outlet Ø68mm
- Plug & Play

OEM intercooler:
Cooling surface 102.400mm²
Charge air volume 8.2L
Inlet and outlet Ø68mm

WT EVO 3(.X) Competition:
Cooling surface 189,000mm²
Charge air volume 16.5L
Inlet and outlet Ø68mm

Remark:
Possible recalibration of the ACC necessary

Scope of delivery:
1 intercooler together with the crossbar
1 mounting material
1 installation instructions
1 parts certificate (OPF models excluded)
1 ACC bracket (if selected)

With parts certificate (for easy registration according to §19 paragraph 3 of the StVZO).
